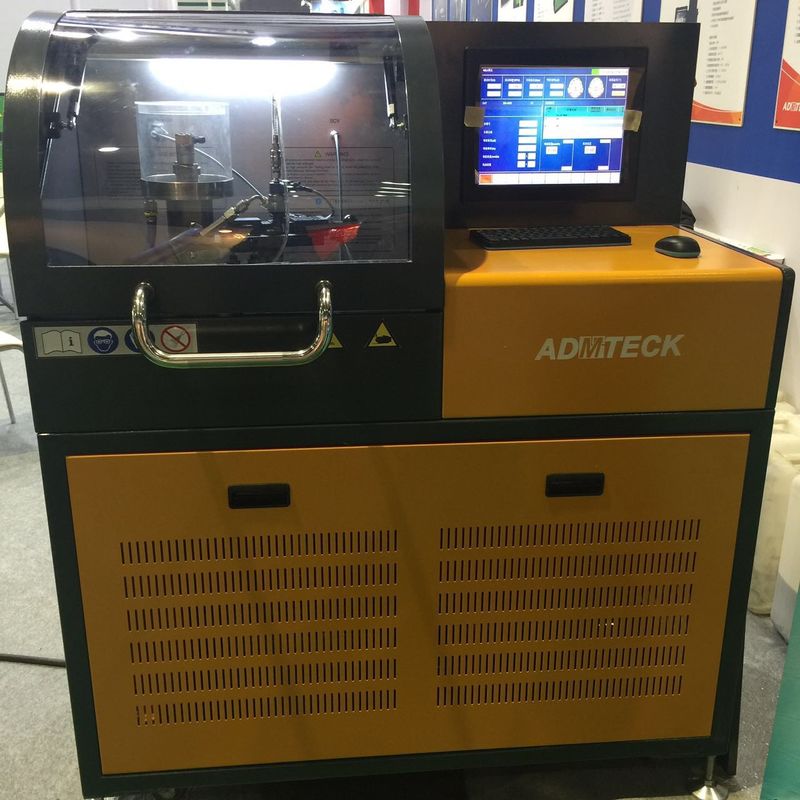

Common Rail Injector Test Bench Of BOSCH , DENSO , DELPHI , CUMMINS , CATERPILLAR Etc

Common Rail Injector Test Bench Of BOSCH , DENSO , DELPHI , CUMMINS , CATERPILLAR Etc

  • Common Rail Injector Test Bench Of BOSCH , DENSO , DELPHI , CUMMINS , CATERPILLAR Etc
  • Common Rail Injector Test Bench Of BOSCH , DENSO , DELPHI , CUMMINS , CATERPILLAR Etc
Common Rail Injector Test Bench Of BOSCH , DENSO , DELPHI , CUMMINS , CATERPILLAR Etc
Product Details:
Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM9208
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: pallet
Delivery Time: two weeks
Payment Terms: 30% T/T in advance, 70% T/T before shipment L/C Western Union
Supply Ability: 50sets
Contact Now
Detailed Product Description
Oil Pump Motor Power: 4KW Oil Pressure Control Range: 10-250 BAR
Injection Pulse Width: 100-5000μs Injector Flow Testing Range: 0.1-2000ML/1000 Times
Oil Flow Testing Range: 1-200L/H
High Light:

common rail diesel injector test bench

,

common rail test equipment

Main Functions:

Test common rail injectors of BOSCH,DENSO,DELPHI,CUMMINS,CATERPILLAR etc.

Test piezoelectric injectors of BOSCH,DENSO,DELPHI,VDO etc.

Major projects of test injectors: Sealing, the backflow and the injection volume under full-loaded status, injection volume at the emission point, the flow volume of idling status, pre-injected volume of the injectors..

Test medium pressure common rail injector (C7,C9,3126 etc) of CATERPILLAR HEUI.

Test the oil flow volume of medium pressure common rail injector.

Test the injection response time of injectors.

Test the solenoid valve dynamic running of common rail injector.(Another schedule)

Edit current drive characteristics of common rail injector.

With hundreds of standard testing data inside common rail injectors.

Testing data could be saved and printed.

Customers can calibrate the injector without standard data.

Bosch injector can produce QR codes.(Additional payment).



Main Specification:

Common rail pump drive motor power:4KW

Oil pump motor power:4KW

Test diesel oil supply pressure:4 BAR

Common rail testing pressure range:10-220MPA

Oil pressure control range:10-250 BAR

Injection pulse width: 100-5000μs

Injector flow testing range:0.1-2000ML/1000 times

Oil flow testing range:1-200L/H

Oil tank capacity:20L

Diesel oil tank capacity:30L

Temperature control range:35-45℃

Dimensions:1250x700x1400MM

Weight:500KG
