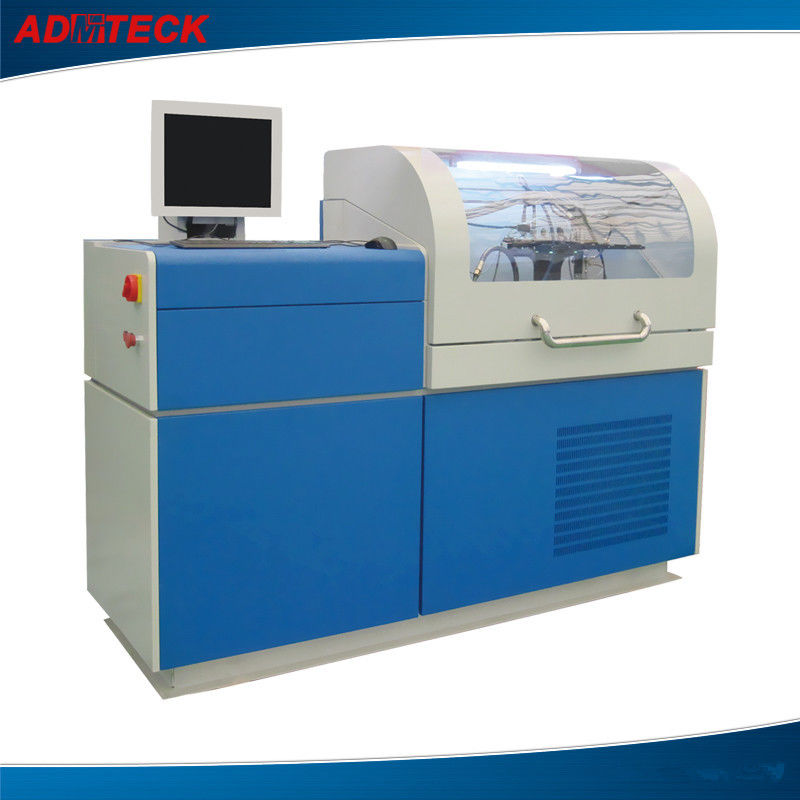

Accuracy injector Common Rail Test Equipment with 6 / 12 Cylinders 18.5KW 380V

Accuracy injector Common Rail Test Equipment with 6 / 12 Cylinders 18.5KW 380V

Accuracy injector Common Rail Test Equipment with 6 / 12 Cylinders 18.5KW 380V

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM8719

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PALLET
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment L/C Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Cylinders: 6 / 12 Color: Blue
Cooling Method: Water Cooling Fuel Tank Capacity: 80L
Power: Electronic Product Name: Common Rail Injector Test Bench
Motor Power: 15Kw|18.5Kw Working Voltage: 220V|380V|415V

Accuracy injector Common Rail diesel Test Equipment with 6 / 12 Cylinders 18.5KW 380V


Quick Details

Indication: with flow meter

Test injector brand: BOSCH, DELPHI, DENSO, SIEMENS

Usage: Auto Testing Machine

Color: green blue yellow or on request

Power: Electronic

1.  Power: 15Kw, 18.5Kw

2.  Rated Voltage: 220V/380V/415V

3.  Rated Voltage: 50/60HZ

4. Cylinders: 6 / 12

5.  Speed Range:  0——4000rpm.

6.  Temperature Control Range: 42℃ ,Accuracy:±2℃

7.  Fuel supply pressure range: 0—0.4Mpa

8.  Feed Volume Measurement Range: 0.03----45L/H

9.  Return Volume Measurement Range: 6----400L/H

10. Rail pressure: up to 2000Bar

11. Cooling capacity: 5000Kal (water cooling)

12. Weight: 1080kgs


Common rail test bench ADM8719:

  ADM8719 common rail test bench is our latest independent researched special device to test the

performance of high-pressure common rail pump and injector, it can test common rail pump and injector

of BOSCH, SIEMENS,DELPHI and DENSO. It tests the common rail injector by imported high precise flow meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also

obtained by computer. 19 LCD screen display makes the data more clear. ADM8719 can fulfill the remote

assistance by internet and make the maintenance easy to operate. Advanced technology, steady

performance, precise measurement and convenient operation.


Competitive Advantage:

  • Condition
  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience
  • Transport Terms: By Sea
  • Packing : wooden box


Main Characteristics:


1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4,


2. Test the flow control valve of the common rail pumps.

3. Test the sealing of the CR injectors, the injection  flow volume under full-loaded, emission point,

idling and the pre-injection, also back flow volume.

Main parameters:

1. Main motor power: 15KW(20HP),18.5KW(25HP);

2. Working voltage: 3 phase 220/380/415V,    50HZ/60HZ;

3. Speed range: 0—4000rpm;

4. Supply pressure of the testing fuel: 0—4bar;

5. Fuel tank capacity: 80L;

6. Currency control range: 0—3A;

7. Injection width control range: 100--3000µs;

8. Injection volume range: 0.1ML—2000ML/1000times;

9. Backflow measuring range: 6—400L/H;

10. Pressure control range: 0—2000BAR;

11. Fuel temperature range: 30--60℃;

12. Cooling method: Compressor cooling

13. Cooling capacity: 5000KALTechnical Specification:


1.   Power

15KW  18.5Kw

2.   Rated Voltage


3.   Rated Voltage


4.   Speed Range


5.   Supply pressure of the testing fuel


6.   Fuel tank capacity


7.  Currency control range


8.  Injection width control range


9.   Injection volume range


10.  Backflow measuring range:


11.  Pressure control range


12.  Fuel temperature range


13.  Cooling method

Compressor cooling

14.  Cooling capacity:



Factory Pictures:

Accuracy injector Common Rail Test Equipment with 6 / 12 Cylinders 18.5KW 380V

Accuracy injector Common Rail Test Equipment with 6 / 12 Cylinders 18.5KW 380V

Accuracy injector Common Rail Test Equipment with 6 / 12 Cylinders 18.5KW 380V
