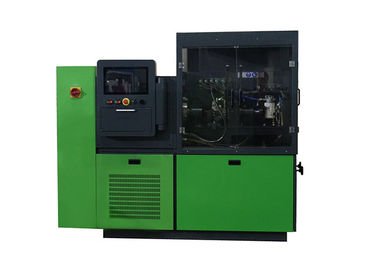

220V 11kw automatic BOSCH common rail system test bench With industrial computer

220V 11kw automatic BOSCH common rail system test bench With industrial computer

220V 11kw automatic BOSCH common rail system test bench With industrial computer

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM800SEN

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PALLET
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment L/C Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Cylinders: 6 / 12 Feature: With Industrial Computer
Rated Voltage: 50/60HZ Color: Green
Power: Electronic Product Name: Common Rail Injector Test Bench
Motor Power: 11Kw|15Kw|18.5Kw|22K Working Voltage: 220V|380V|415V

 220V 11kw automatic BOSCH common rail system test bench With industrial computer

Quick Details


  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience


Usage: Auto Testing Machine
Power: Electronic
Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience


For testing and calibrating:
1.  Mechanical in-line pumps and distributor pumps
2.  Electronic control VE pumps and in-line pumps  high pressure common rail pumps: BOSCH CP1, CP2,
CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3. Common rail injectors
4. The testing database could be updated
5. Check and calibrate automatically and give out the testing report
6. With industrial computer, more stable and reliable
Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Return Volume Measurement Range: 0---400L/H
Max pressure: 2000 bar
Color: green blue yellow or on request
Weight: 1080kgs

 Technical Specification:

1.   Power

11Kw,15Kw,18.5Kw,22Kw etc

2.   Rated Voltage

220V/380V/415V

3.   Rated Voltage

50/60HZ

4.   Cylinders

6 / 12

5.   Speed Range

0—4000rpm

6.   Temperature Control Range

42℃ ,Accuracy:±2℃

7.   Backflow pressure control range

0—3 bar

8.   Feed Volume Measurement Range

0----45L/H

9.   Return Volume Measurement Range

0---400L/H

10.  Max pressure

2000 bar


Factory Pictures
220V 11kw automatic BOSCH common rail system test bench With industrial computer
220V 11kw automatic BOSCH common rail system test bench With industrial computer
220V 11kw automatic BOSCH common rail system test bench With industrial computer
