| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM720 |
| Certifiion: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PALLET |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment L/C Western Union |
| Supply Ability: | 50SETS |
| Feature: | Large Torque | Color: | Green |
|---|---|---|---|
| Usage: | Auto Testing Machine | Cylinders: | 12 |
| Power: | 5.5kw|7.5kw|11kw|15kw|18.5kw|22kw | Rated Voltage: | 415V|380V|220V |
| High Light: | injector pump test bench,fuel injection pump tester |
||

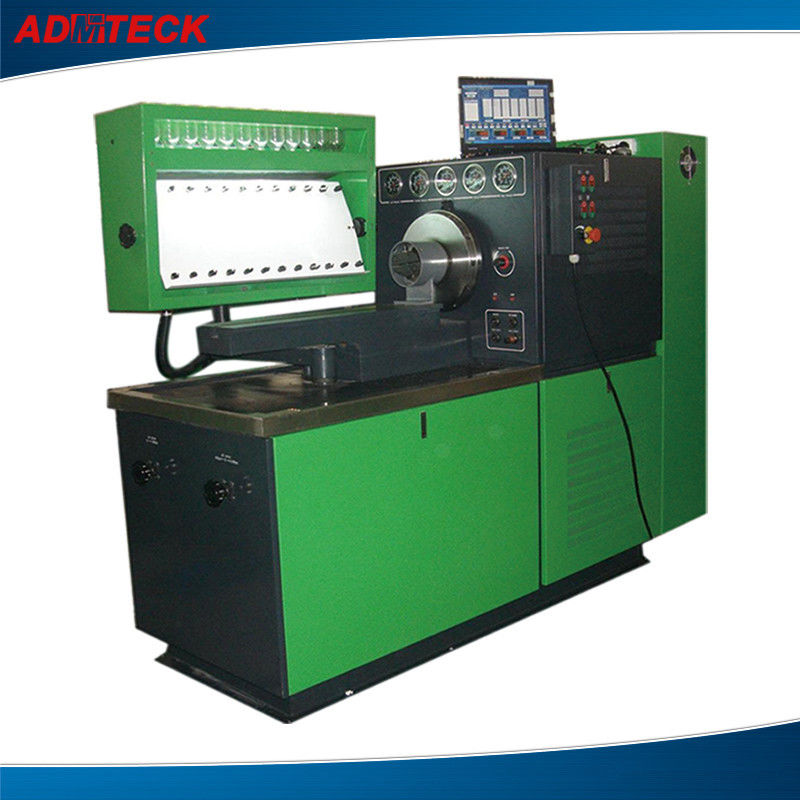

Custom 22KW large torque fuel pump test bench equipment 12 cylinders / LCD monitor
Quick Details
Adjustable cylinders 12
Capability with pump type: All in- line and rotary pumps
Packaging Detail: Fumigation-free Wooden Case
Delivery Detail: Within Two Weeks After Order Confirmation
Competitive Advantage:
Description:
Function:
1. Fuel delivered from each cylinder on any speed can be tested
2. Speed, temperature, counter, pressure, Rack meter can be displayed on the computer of test bench.
3. Controlled by the digital control unit or computer
4. 15'', 17''CRT or LCD monitor
5. Directly driven by motor, variable frequency stepless speed regulation.
6. Static inspection on the delivery time of each cylinder
7. Inspection on Performance of the mechanical governor
8. Inspection on performance of the solenoid valve of VE pump
9. Inspection on performance of the pneumatic governor
10. Inspection on the performance of the Pressure Compensator
11. Oil returned volume of distribute pump
12. Inspection on the Inner pressure of the VE pump
13. Inspection on the performance of the minus pressure of pneumatic governor
14. Inspection on Pump body sealing performance
Technical specifiion:
|
Motor power |
5.5,7.5,11,15,18.5,22kw |
|
Power supply voltage |
415,380,220v |
|
Power supply frequency |
50/60 HZ |
|
Protection level |
IP54 |
|
Speed range |
0-4000 rpm |
|
Counter setting range |
0-9999 |
|
Temperature setting range |
0-80 |
|
Center height of driving shaft |
125mm |
|
DC power |
12/24V |
|
Diameter of the Driving connector |
120mm |
|
Measuring tube |
45ml,150ml,260ml(optional) |
|
Number of Measuring cylinder |
6,8,12 |
|
Oil Supply pump |
10L/min |
|
Oil supply pressure: High pressure |
0-40bar |
|
Oil supply pressure: low pressure |
0-4bar |
|
Oil tank cubage |
60L |
|
Heat Power |
2kw |
|
Temperature controlled range |
30-65 |
|
Size |
2100*1060*1750mm |
|
Weight |
950kg
|
Competitive Advantage:
Advantages with ranges of adjustment speed, stable speed, large torque, easy operation and so on.
