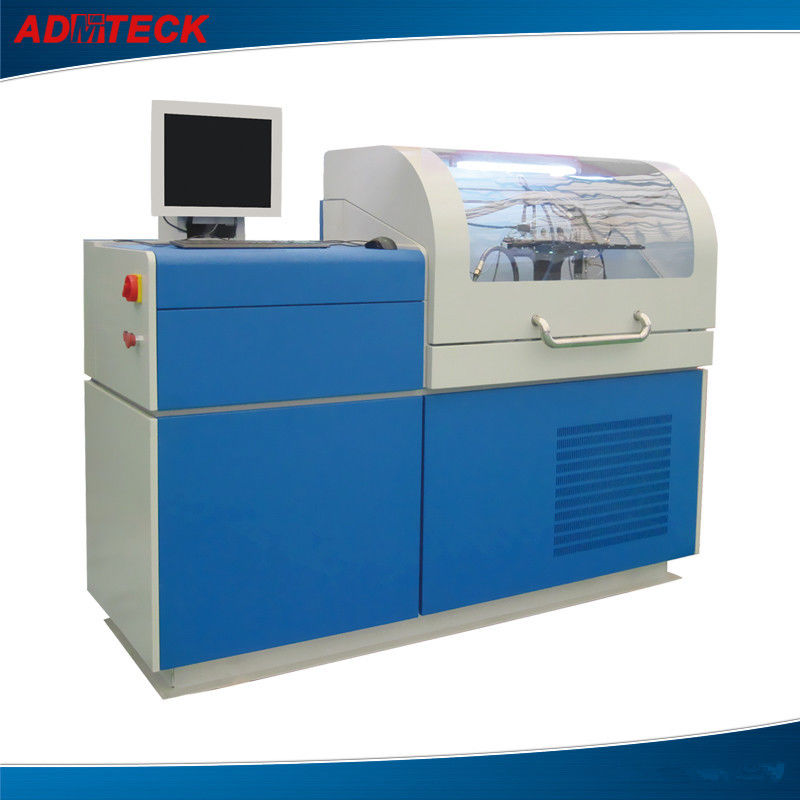

ADM8719,LCD Display, to test and calibrate Common Rail Systems, Compressor Cooling Method,Measuring with Sensors

ADM8719,LCD Display, to test and calibrate Common Rail Systems, Compressor Cooling Method,Measuring with Sensors

ADM8719,LCD Display, to test and calibrate Common Rail Systems, Compressor Cooling Method,Measuring with Sensors

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM8719

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Working Voltage: 3 Phase Color: Blue Or Green
Power: 18.5Kw Product Name: Common Rail System Test Bench
Rated Voltage: 220V|380V|415V Test Injector Brand: BOSCH/DENSO/DELPHI/SIMENS
Indication: With Flow Meter

Common Rail System Test Bench
ADMTECK
ADM8719, 18.5Kw, 2000Bar, can test different Common Rail Injectors and Common Rail Pumps

ADM8719 is our latest independent researched special device to test the
performance of high pressure common rail pump and injector, it can test common rail pump and injector ofBOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported high precise flow
meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also
obtained by computer. LCD screen display makes the data more clear.Can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced technology, steady performance, precise measurement and convenient operation.

Main parameters:


1.   Power

18.5Kw(25HP)

2.   Rated Voltage

3 phase,220V/380V/415V

3.   Rated Voltage

50/60HZ

4.   Speed Range

0—4000rpm

5.   Supply pressure of the testing fuel

0—4bar

6.   Fuel tank capacity

 80L

7.  Currency control range

0—3A

8.  Injection width control range

100--3000µs

9.   Injection volume range

0.1ML—2000ML/1000times

10.  Backflow measuring range:

6—400L/H

11.  Pressure control range

0—2000BAR

12.  Fuel temperature range

30--60℃

13.  Cooling method

Compressor cooling

14.  Cooling capacity:

5000KAL


Main Functions:
1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4, DELPHI
and SIMENS
2. Test the flow control valve of the common rail pumps.
3. Test the sealing of the CR injectors, the injection flow volume under full loaded, emission point, idling
and the pre-injection, also back flow volume.

Quick Details
Indication: with flow meter
Test injector brand: BOSCH, DELPHI, DENSO, SIEMENS
Usage: Auto Testing Machine
Color: green blue yellow or on request
Power: Electronic

Competitive Advantage:

  • Condition
  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience
  • Transport Terms: By Sea
  • Packing : wooden box


Factory Pictures:


ADM8719,LCD Display, to test and calibrate Common Rail Systems, Compressor Cooling Method,Measuring with Sensors
ADM8719,LCD Display, to test and calibrate Common Rail Systems, Compressor Cooling Method,Measuring with Sensors
ADM8719,LCD Display, to test and calibrate Common Rail Systems, Compressor Cooling Method,Measuring with Sensors
