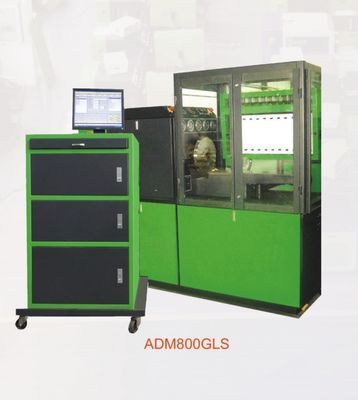

ADM800GLS, 11Kw/15Kw/18.5Kw/22Kw,Common Rail System Test Bench and Mechanical Fuel Pump Test Bench, measuring with cups

China ADM800GLS, 11Kw/15Kw/18.5Kw/22Kw,Common Rail System Test Bench and Mechanical Fuel Pump Test Bench, measuring with cups supplier

Large Image :  ADM800GLS, 11Kw/15Kw/18.5Kw/22Kw,Common Rail System Test Bench and Mechanical Fuel Pump Test Bench, measuring with cups

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM800GLS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Cylinders: 6 / 12 Speed Range: 0—4000rpm
Color: Green Max Pressure: 2000 Bar
Power: 11/Kw15KW/18.5KW/22KW Product Name: Common Rail Pump Test Bench
Rated Voltage: 415V Test Injector Brand: BOSHC/DENSO/DELPHI/SIMENS

ADMTECK ADM800GLS,

Common Rail System Test Bench and Mechanical Fuel Pump Test Bench, for testing common rail injectors and pumps,and for testing mechanical fuel pumps, measuring with cups, four kinds of output power for option



Specifications:

Power: 11Kw,15Kw,18.5Kw,22Kw

Rated Voltage: 220V/380V/415V

Rated Voltage: 50/60HZ

Cylinders: 6 / 12

Speed Range: 0—4000rpm

Temperature Control Range: 42℃ ,Accuracy:±2℃

Backflow pressure control range: 0—3 bar

Feed Volume Measurement Range: 0----45L/H

Return Volume Measurement Range: 0---400L/

HMax pressure: 2000 bar

Color: green blue yellow or on request

Weight:1080kgs



Main Functions:

For testing and calibrating:

1.   Mechanical in-line pumps and distributor pumps

2.   Electronic control VE pumps and in-line pumps high pressure common rail pumps: BOSCH CP1, CP2,

CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP

3.   Common rail injectors

4.   The testing database could be updated

5.   Check and calibrate automatically and give out the testing report

6.   With industrial computer, more stable and reliable





 Technical Specification:

1.   Power

11Kw,15Kw,18.5Kw,22Kw etc

2.   Rated Voltage

220V/380V/415V

3.   Rated Voltage

50/60HZ

4.   Cylinders

6 / 12

5.   Speed Range

0—4000rpm

6.   Temperature Control Range

42℃ ,Accuracy:±2℃

7.   Backflow pressure control range

0—3 bar

8.   Feed Volume Measurement Range

0----45L/H

9.   Return Volume Measurement Range

0---400L/H

10.  Max pressure

2000 bar



Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience



Factory Pictures:

ADM800GLS, 11Kw/15Kw/18.5Kw/22Kw,Common Rail System Test Bench and Mechanical Fuel Pump Test Bench, measuring with cups



ADM800GLS, 11Kw/15Kw/18.5Kw/22Kw,Common Rail System Test Bench and Mechanical Fuel Pump Test Bench, measuring with cups

ADM800GLS, 11Kw/15Kw/18.5Kw/22Kw,Common Rail System Test Bench and Mechanical Fuel Pump Test Bench, measuring with cups
