| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM9100 |
| Certifiion: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PALLET |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Supply Ability: | 50SETS |
| Cooling Method: | Fan Cooling | Product Name: | Common Rail Test Equipment |
|---|---|---|---|
| Usage: | Auto Testing Machine | Power: | 4Kw |
| Test Injector Brand: | BOSCH|DELPHI|DENSO | Working Voltage: | 220V|380V|415V |
| High Light: | common rail diesel test equipment,common rail injector test bench |
||
ADMTECK

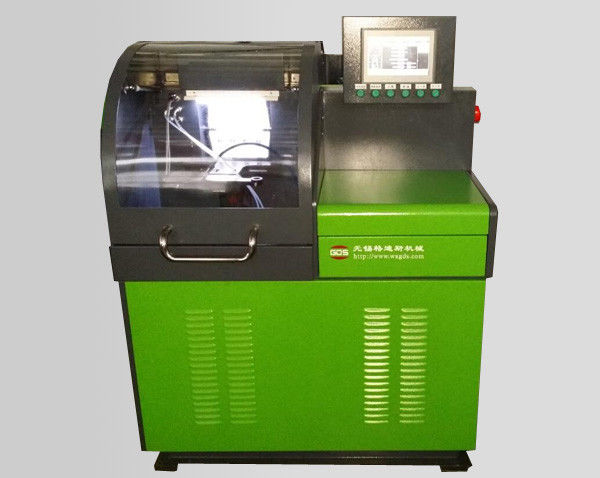

ADM9100,4KW,2000Bar,Common Rail Injector Test Equipment For Testing Diiferent Kinds Of CR Injectors 4KW
Common Rail Diesel Test Equipment
Quick Details
Power: Electronic
Usage: Auto Testing Machine
Color: blue yellow or on request
Cooling method: Water Cooling or Fan Cooling
Temperature range: 30—50℃
Competitive Advantage:
For testing and calibrating:
Main functions:
1. Test common rail injectors of BOSCH,DELPHI,DENSO
2. Check the sealing of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
Technical Specifiion:
|
1. Power |
4KW |
|
2. Variable frequency motor speed range |
1000rpm |
|
3. Pressure control range |
10—2000bar |
|
4. Pressure control accuracy |
±3bar |
|
5. Injection frequency setting range |
100—1000 Times/min |
|
6. Metering range |
20ml
|
|
7. Fuel tank capacity |
20L |
|
8. Filter accuracy |
5µm |
|
9. Temperature range |
30—50℃ |
Factory Pictures:
Contact Person: Panny
Tel: +8613921181021
