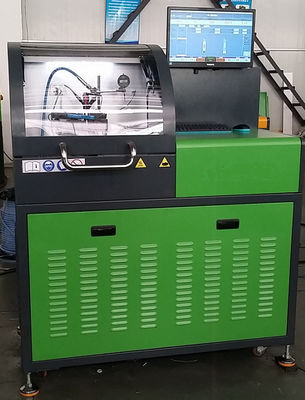

Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar

Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar

    • Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar
    • Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar
  • Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM9200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: PALLET
    Delivery Time: TWO WEEKS
    Payment Terms: 30% T/T in advance, 70% T/T before shipment L/C Western Union
    Supply Ability: 50SETS
    Contact Now
    Detailed Product Description
    Color: Yellow Fuel Tank Capacity: 40L
    Power: Electrical Product Name: Common Rail Injector Test Bench
    Usage: Auto Testing Machine Motor Power: 4Kw

    Electrical common rail diesel injector tester , fuel injection pump test bench 4Kw 10 - 2000bar
    Quick Details

    • High Quality
    • Reasonable Price
    • Good after Service
    • More Than 10 Years Experience
    • NEW DESIGN
    • EASY TO MAINTAIN
    • Pump body sealing performance
    • High-precision flow meter

    Competitive Advantage:
    Power: Electronic
    Usage: Auto Testing Machine
    Color: blue yellow or on request
    Temperature range: 30—50℃
    Motor power: 4Kw



    Description:
    Main functions:
    1. Test common rail injectors of BOSCH,DELPHI,DENSO
    2. Check the sealing  of CR injectors
    3. Check the backflow and the injection volume under full-loaded status
    4. Test the injection volume at the emission point
    5. Test the flow volume of idling status
    6. Test the pre-injected volume of the CR injectors
    7. Clean the injectors while testing
    8. Testing data could be saved and printed
    9. Standard parameters settable
    10. Determine the injectors are good or bad automatically



     Technical Specification:

    1.  Motor power

    4Kw

    2.  Variable frequency motor speed range

    0—3000rpm


    3.   Pressure  control range

    10—2000bar

    4.   Pressure control accuracy

    ±3bar

    5.   Injection frequency setting range

     100—1500 Times/min

    6.   Metering range of the flow meter

    0.1ml—2000ml/1000 times

    7.   Fuel tank capacity

    40L

    8.   Filter accuracy

    5µm

    9.  Temperature range

    30—50℃


    Factory Pictures:

    Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar
    Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar
    Electrical Common Rail Injector Tester , Test Bench 4Kw 10 - 2000bar
