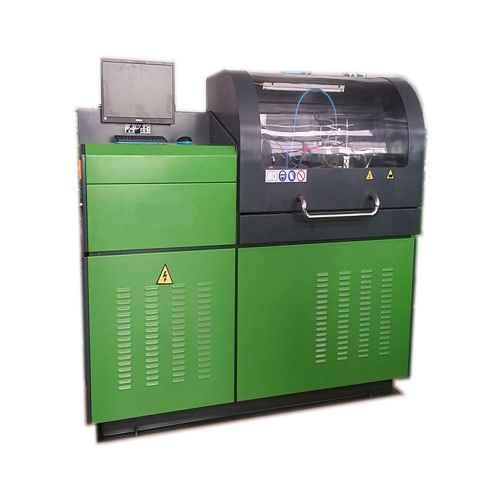

ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw

ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw

    • ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw
    • ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw
    • ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw
  • ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM8719

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Polyboard
    Delivery Time: TWO WEEKS
    Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
    Supply Ability: 50SETS
    Contact Now
    Detailed Product Description
    Brand Name: ADMTECK Speed Range: 0----4000rpm
    Power: Electronic Fuel Supply Pressure Range: 0----0.4Mpa
    Application: BOSCH / DENSO / DELPHI Usage: Auto Testing Mechine
    Temperrature Control Range: 40±2℃ Cooling Capacity: 5000Kal (water Cooling)
    Main Motor Power: 18.5Kw Pressure: 2000Bar

    ADMTECK

    ADM8719, Common Rail System Test Bench, for testing and calibrating different common rail injectors and pumps, 18.5Kw,2000Bar



    Quick Details



    Usage: Auto Testing Mechine

    Power: 18.5Kw
    Rated Voltage: 220V/380V/415V
    Rated Voltage: 50/60HZ
    Cylinders: 6 / 12
    Speed Range: 0—4000rpm
    Temperature Control Range: 42℃ ,Accuracy:±2℃
    Backflow pressure control range: 0—3 bar
    Feed Volume Measurement Range: 0----45L/H
    Return Volume Measurement Range: 0---400L/H
    Rail pressure: up to 2000 bar



    Functions:

    Industrial computer controls timely, windows system, touching screen operation

    Adopt 0~2000bar pressure caused by original high pressure common rail pump

    Test the pre-injection oil quantity of common rail injector.

    Test the max. oil quantity of common rail injector.

    Test the backflow oil quantity of common rail  injector.

    Test the average oil quantity of common rail injector.

    Built-in standard database of common rail injector,Free upgrades,users can also be free to add data.

    Measuring the returned oil quantity of distribution pumps.



     Technical Specification:



    1.   Power

    18.5Kw

    2.   Rated Voltage

    220V/380V/415V

    3.   Rated Voltage

    50/60HZ

    4.   Cylinders

    6 / 12

    5.   Adjustable rotation speed range

    0—4000rpm

    6.   Backflow pressure control range

     0—3 bar

    7.   Temperature Control Range

    42℃ ,Accuracy:±2℃

    8.   Feed Volume Measurement Range

    0----45L/H

    9.   Return Volume Measurement Range

    0---400L/H

    10.  Max pressure

    2000 bar





    Why Choose Us

    • Top technology of mould r&d, manufacturing, die steel, heat treatment
    • Experienced professional engineers
    • Advanced equipment



    Factory Pictures


    ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw
    ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw
    ADM8719 Common Rail Test Equipment,to test and calibrate different common rail injectors and pumps,18.5Kw
