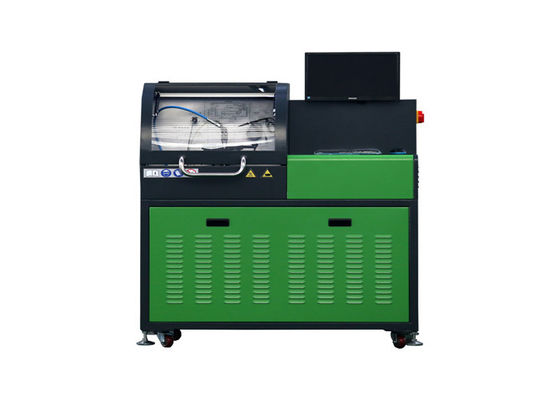

4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench

4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench

    • 4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench
    • 4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench
    • 4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench
  • 4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM9200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: PALLET
    Delivery Time: TWO WEEKS
    Payment Terms: 30% T/T in advance, 70% T/T before shipment L/C Western Union
    Supply Ability: 50SETS
    Contact Now
    Detailed Product Description
    Color: Green Feature: High Precision
    Product Name: Common Rail Test Equipment Usage: Auto Testing Machine
    Power: 4Kw Test Injector Brand: BOSCH|DELPHI|DENSO
    Working Voltage: 220V|380V|415V

    High precision green Common Rail test equipment / Diesel Fuel Injection Test Bench





    Description:

    Main functions:

    1. Test common rail injectors of BOSCH,DELPHI,DENSO

    2. Check the sealing  of CR injectors

    3. Check the backflow and the injection volume under full-loaded status

    4. Test the injection volume at the emission point

    5. Test the flow volume of idling status

    6. Test the pre-injected volume of the CR injectors

    7. Clean the injectors while testing

    8. Testing data could be saved and printed

    9. Standard parameters settable

    10. Determine the injectors are good or bad automatically





    Main technical specifications:

    1. Motor power: 4Kw

    2. Variable frequency motor speed range: 0—3000rpm

    3. Pressure  control range: 10—2000bar

    4. Pressure control accuracy: ±3bar

    5. Injection frequency setting range:

         100—1500 Times/min

    6. Metering range of the flow meter:

         0.1ml—2000ml/1000 times

    7. Fuel tank capacity: 40L

    8. Filter accuracy: 5µm

    9. Temperature range: 30—50℃



    Technical Specification:



    1.  Motor power

    4Kw

    2.  Variable frequency motor speed range

    0—3000rpm



    3.   Pressure  control range

    10—2000bar

    4.   Pressure control accuracy

    ±3bar

    5.   Injection frequency setting range

     100—1500 Times/min

    6.   Metering range of the flow meter

    0.1ml—2000ml/1000 times

    7.   Fuel tank capacity

    40L

    8.   Filter accuracy

    5µm



    9.  Temperature range

    30—50℃



    Competitive Advantage:

    • High Quality
    • Reasonable Price
    • Good after Service
    • More Than 10 Years Experience
    • NEW DESIGN
    • EASY TO MAINTAIN
    • Pump body sealing performance
    • High-precision flow meter



    Factory Pictures:

    4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench

    4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench

    4Kw,High Precision Common Rail Injector Testing Equipment ,Test Bench
