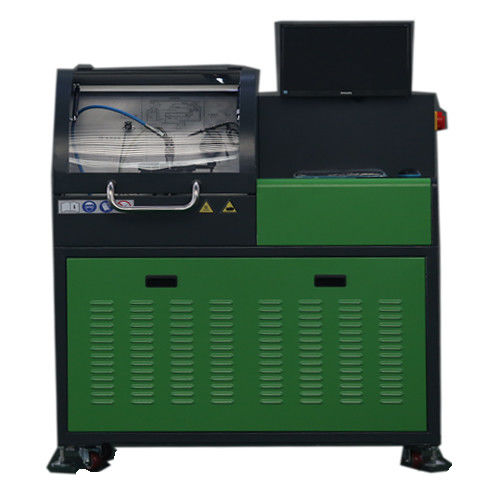

Flow Volumes Common Rail Injector Test Bench Testing Leakage , high precision flow meters

Flow Volumes Common Rail Injector Test Bench Testing Leakage , high precision flow meters

    • Flow Volumes Common Rail Injector Test Bench Testing Leakage , high precision flow meters
    • Flow Volumes Common Rail Injector Test Bench Testing Leakage , high precision flow meters
  • Flow Volumes Common Rail Injector Test Bench Testing Leakage , high precision flow meters

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM9200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Polyboard
    Delivery Time: Two weeks
    Contact Now
    Detailed Product Description
    Output Power: 4 Kw Motor Speed Ranger: 0---2000rpm
    Driving Currenvy Of The Injector(Max): 28A Flow Testing Accuracy: 0.1ml
    Cooling Method: Water Cooling Or Fan Cooling Flow Testing Range: 0---2000ml/1000times

    ADMTECK9200 Common Rail Injector Test Bench could test the leakage and the flow volumes





    Main Specifications:



    1.Output Power: 4KW

    2.Motor Speed Ranger:0---2000rpm

    3.Temperature Control Range:40±2℃

    4.Driving Currency of the Injector(Max): 28A

    5.Injection Time:100---3000μs

    6.Pressure Regulating Range:0---2000Bar

    7.Pressure Control Accuracy:±0.5Mpa

    8.Flow Testing Range:0---2000ml/1000times

    9.Flow Testing Accuracy:0.1ml

    10.Cooling Method:Water Cooling or Fan Cooling



    Main Functions:



    1.Applied to test common rail injectors of Bosch, Denso, Delphi, Caterpillar etc.

    2.Applied to test common rail injectors of Bosch, Denso, VDO PIEZO.

    3.Could test the leakage, and the flow volumes under different working status, such as the fuel flow volume under backflow, pre-injection, idling, full-loaded and the emission.

    4.Check the common rail injector and judge the status is OK or BAD

    5.Could edit the injection curve

    6. The operators could edit the testing steps as request

    7.The testing results could be saved and printed

    8.The testing data of new injectors could be set and saved in the software

    9.With hundreds of standard testing data inside the testing software

    10.With various accessories for different common rail injectors



    Competitive Advantage:

    • High Quality
    • Reasonable Price
    • Good after Service
    • Supply reliable, precise testing system for diesel injection system
    • More Than 10 Years Experience
    • Satisfy our customers' expectation on the products and services
    • Power: Electronic
    • Usage: Auto Testing Machine

    ​Inside Pictures:



    Flow Volumes Common Rail Injector Test Bench Testing Leakage , high precision flow metersFlow Volumes Common Rail Injector Test Bench Testing Leakage , high precision flow meters
