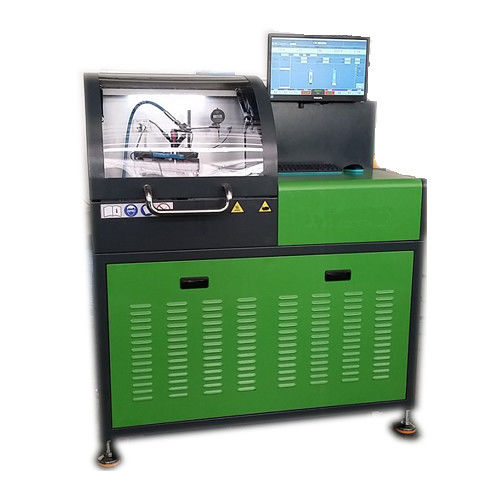

4KW Common Rail Injector Test Bench With Water Cooling / Fan Cooling For CR Injectors

4KW Common Rail Injector Test Bench With Water Cooling / Fan Cooling For CR Injectors

    • 4KW Common Rail Injector Test Bench With Water Cooling / Fan Cooling For CR Injectors
    • 4KW Common Rail Injector Test Bench With Water Cooling / Fan Cooling For CR Injectors
  • 4KW Common Rail Injector Test Bench With Water Cooling / Fan Cooling For CR Injectors

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM9200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Polyboard
    Delivery Time: Two weeks
    Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
    Contact Now
    Detailed Product Description
    Output Power: 4 Kw Motor Speed Range: 0----2000rpm
    Driving Currenvy Of The Injector(Max): 28A Pressure Regulating Range: 0----2000Bar
    Flow Testing Accuracy: 0.1ml Cooling Method: Water Cooling Or Fan Cooling
    Pressure Control Accuracy: ±0.5Map Temperature Control Range: 40±2

    ADMTECK,ADM9200 Common Rail Injector Test Bench could edit the injection curve





    Main Specifications:



    1.Output Power 4KW
    2.Motor Speed Ranger 0---2000rpm
    3.Temperature Control Range 40±2℃
    4.Injection Time 100---3000μs
    5.Pressure Regulating Range 0---2000Bar
    6.Pressure Control Accuracy ±0.5Mpa
    7.Flow Testing Range 0---600ml/1000times
    8.Flow Testing Accuracy 0.1ml
    9.Cooling Method Water Cooling or Fan Cooling
    10.Driving Currency of the Injector(Max) 28A
    11.The operators could edit the testing steps as request





    Main Functions:

    1.Could test the leakage, and the flow volumes under different working status, such as the fuel flow volume under backflow, pre-injection, idling, full-loaded and the emission.

    2.Could edit the injection curve

    3.Applied to test common rail injectors of Bosch, Denso, Delphi, Caterpillar etc.

    4. The operators could edit the testing steps as request

    5.The testing results could be saved and printed

    6.The testing data of new injectors could be set and saved in the software

    7.With the same high precision flow meters as EPS815's

    8.With hundreds of standard testing data inside the testing software

    9.With various accessories for different common rail injectors

    10.Check the common rail injector and judge the status is OK or BAD

    11. With various accessories for different common rail injectors





    Competitive Advantage:

    • High Quality
    • Reasonable Price
    • Good after Service
    • More Than 10 Years Experience
    • Power: Electronic
    • Usage: Auto Testing Machine
    • Trustable quality
    • Punctual Delivery Time
    • Easy to maintain
    • Advantages with ranges of adjustment speed, stable speed, large torque, easy operation and so on.



    Factory Pictures:



    4KW Common Rail Injector Test Bench With Water Cooling / Fan Cooling For CR Injectors4KW Common Rail Injector Test Bench With Water Cooling / Fan Cooling For CR Injectors
