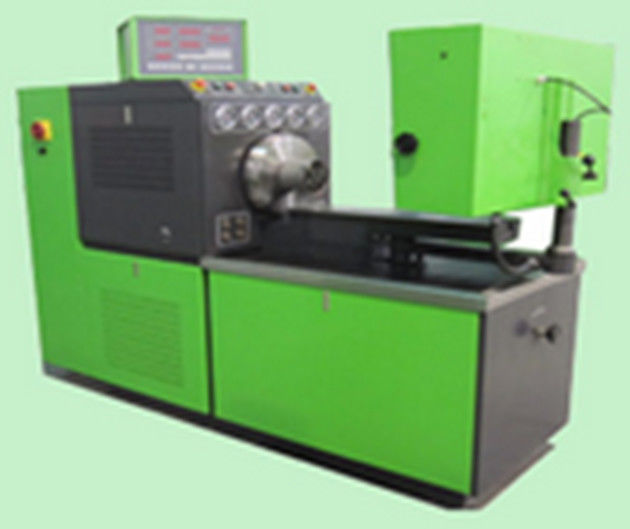

ADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel Pumps

ADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel Pumps

    • ADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel Pumps
    • ADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel Pumps
  • ADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel Pumps

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM600-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Polyboard
    Delivery Time: TWO WEEKS
    Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
    Supply Ability: 50SETS
    Contact Now
    Detailed Product Description
    Frequency: 50 / 60Hz Protection Level: IP54
    Inner Power Supply: 12 / 24V Power: 5.5/7.5/11/15/18.5/22KW
    Rated Voltage: 415V|380V|220V Control: Computer Controlled
    Heater For Test Oil: 2Kw Circumstance Temperature Max: 40

    ADMTECK ADM600-B, Machenical Fuel Pump Test Bench,Six kinds of output power for option,for testing different fuel pumps​,fan cooled 6 / 8 / 12 cylinders,without Forced Oil Lubrication Function


       Quick Details

        Accurate metering

        Digital display for speed control

        Digital display for stroke metering

        Digital diaplay for temperature

        Strong flywheel with gread mass--smoothly driving and speed controllable High precision, good balance
        Capability with pump type: All in- line and rotary pumps

        ADM600 is adopted by the advanced cooling system --- COMPRESSOR, not like common ones that       cooled by FAN and the raw material of oil tank is stainless steel, not iron. Even the body volume is
    bigger than common injection test bench and the body material is solid than common tester so it can guarantee the machine works.



    Main Specifications:



    Technical Specification

    1. Motor Power Rated: 5.5/7.5/11/15/18.5/22KW

    2. Voltage 220/380/415

    3. Frequency: 50

    4. International protection:IP54

    5. Rated Currency: 35.5

    6. Connection Mode: Triangle

    7. Speed Range: 0---4000

    8. Speed Display Range: 0---9999

    9. Circle Display Range: 0---9999

    10. Wheel Interia: 0.76

    11. Shaft Height: 125

    12. ISO Main Coupling Dia. :120

    13. Number of Testing Cylinders: 12

    14. Measuring Cylinder Capacity: 45/150

    15. Test Oil Tank Capacity: 50



    Oil Feed Pump Capacity

    1. Test Oil Pressure Min.: 0---4

    2. Test Oil Pressure Max.: 0---40



    Pressure Gauge:



    1. Low Pressure: 0---6

    2. High Pressure: 0---60

    3. Inner Pressure of VE Pump: 0---16

    4. Machine Oil Pressure: 0---16



    Temperature Gauge

    1. Heater for Test Oil: elec. Heater

    2. Temperature Regulating Range: 40±2



    Controlling Voltage

    1. Inner Power Supply: 12/24

    2. Tolerance: 10%



    Circumstance Temperature Range

    1.Circumstance Temperature Max.: 40

    2.Working Temperature: 5---40

    3.Normal Working Temperature Range: 10---35

    4.Storage Temperature: -25-60



    Main Functions:



    1.Accurate metering High power--can be used to test P8500

    Digital display for speed control

    Digital display for stroke metering

    Digitaldisplay for temperatures

    2.Strong flywheel with gread mass--smoothly driving and speed controllable High precision,good balance

    3.Modular Design, easy to maintain

    4.12/24 DC power supply for the test of VE pump

    5.Lubricationb System(Optional)

    6.Heater exchanger could control the oil temperature accuracy

    7.Panels are easy for dismounting and cleaning

    8.Testing system with up to 12-cylinders

    9.Oil collector with adjustable height, prolong the useful life of the pipe




     Competitive Advantage:

    • High Quality
    • Reasonable Price
    • Good after Service
    • More Than 10 Years Experience
    • Power: Electronic
    • Usage: Auto Testing MachineADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel PumpsADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel PumpsADM600-B Mechanical Fuel Pump Test Bench For Testing Different Fuel Pumps
