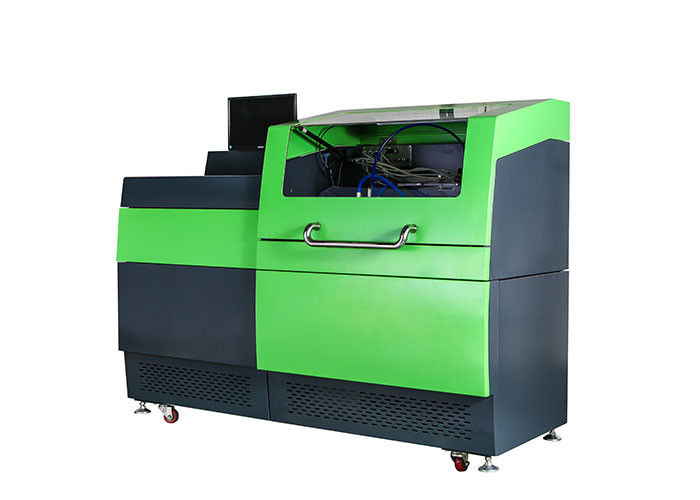

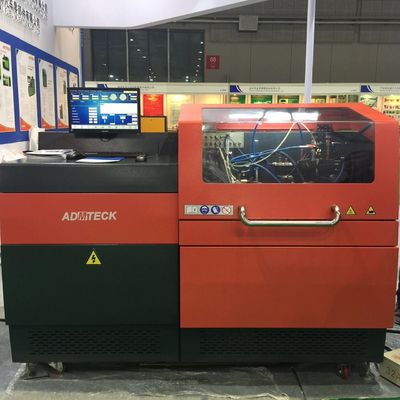

ADM8725 Common Rail System Test Equipment,for testing different common rail injectiors and pumps

ADM8725 Common Rail System Test Equipment,for testing different common rail injectiors and pumps

    • ADM8725 Common Rail System Test Equipment,for testing different common rail injectiors and pumps
    • ADM8725 Common Rail System Test Equipment,for testing different common rail injectiors and pumps
  • ADM8725 Common Rail System Test Equipment,for testing different common rail injectiors and pumps

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM8725

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiate
    Packaging Details: Polyboard
    Delivery Time: two weeks
    Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
    Supply Ability: 50sets
    Contact Now
    Detailed Product Description
    Power: 11Kw,15Kw,18.5Kw Rated Voltage: 220V/380V/450V
    Cooling Capacity: 5000Kal Temperature Control Range: 42℃
    Cylinder: 6 Or 12

    ADM8725 Common Rail System Test Bench, for testing and calibrating of different common rail pumps and injectors, three kinds of output for option, LCD Display



    Technical Specifications:



    1. Power: 11Kw,15Kw,18.5Kw

    2. Rated Voltage: 220V/380V/415V

    3. Rated Voltage: 50/60Hz

    4. Cylinders: 6/12

    5. Speed Range : 0----5000rpm

    6. Temperature Control Range : 42℃, Accuracy:±2℃

    7. Fuel supply pressure range: 0----0.4Mpa

    8. Feed Volume Measurement Range: 0.1ml----2000ml

    9. Return Volume Measurement Range: 1----600L/H

    10. Rail pressure: UP TO 2500Bar

    11. Cooling capacity: 5000Kal



    Main Characteristics:



    For testing and calibrating:

    1.For the testing of different common rail pumps

    BOSCH:CP1,CP2,CP3 pumps

    DENSO:HP0,HP3,HP4

    DELPHI pumps

    2.For the testing of common rail injectors of BOSCH,DENSO,DELPHI.

    3.For the testing piezo injectors of BOSCH,DENSO,VDO



    ADM8725 Common Rail System Test Equipment,for testing different common rail injectiors and pumps
