| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Certification: | CE |
| Model Number: | ADM P110 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polyboard |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Supply Ability: | 50SETS |
| Power: | 11kw | Cooling Method: | Fan Cooling |
|---|---|---|---|
| Product Name: | Common Rail Pump Test Bench | Max Pressure: | 2500 Bar |
| Test Injector Brand: | BOSCH / DELPHI / DENSO / SIEMENS | Speed Range: | 0----4000rpm |
| High Light: | Fan Cooling Common Rail Pumps Bench,11Kw Common Rail Pumps Bench,2500bar Common Rail Bench |
||

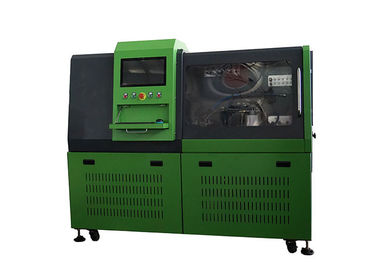

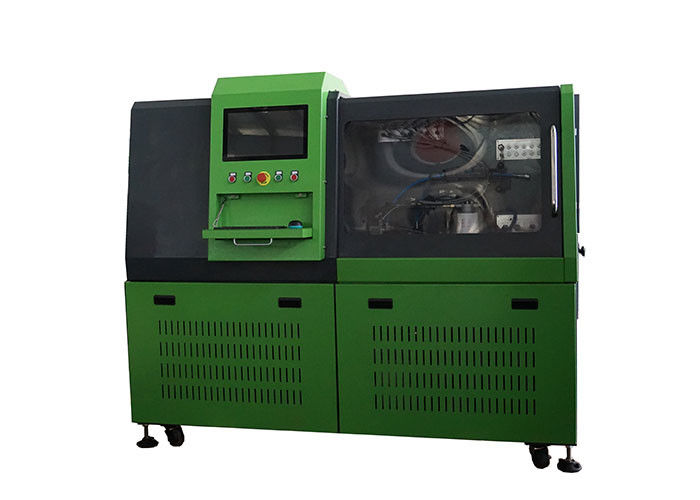

ADM P110, Testing different common rail pumps, 11Kw,2500Bar
Quick Details
Power: 11Kw
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cooling capacity: 5000Kal (Fan cooling)
Speed Range: 0—4000rpm
Temperature Control Range: 40℃ ,Accuracy:±5℃
Return Volume Measurement Range: 6---400L/H
Fuel supply pressure range: 0----0.4Mpa
Feed Volume Measurement Range: 0.03----45L/H
Rail pressure: up to 2500 bar
For testing and calibrating:
1.For the testing of different common rail pumps
BOSCH: CP1, CP2, CP3 pumps
DENSO: HP0, HP3, HP4
DELPHI pumps
2. Pumps
Technical Specifiion:
|
1. Power |
11Kw |
|
2. Rated Voltage |
220V/380V/415V |
|
3. Rated Voltage |
50/60HZ |
|
4. Speed Range |
0—4000rpm |
|
5. Fuel supply pressure range |
0----0.4Mpa |
|
6. Temperature Control Range |
40℃ ,Accuracy:±5℃ |
|
7. Feed Volume Measurement Range |
0.03----45L/H |
|
8. Return Volume Measurement Range |
6---400L/H |
|
9. Cooling capacity |
2000Kal (Fan cooling) |
Competitive Advantage:
Contact Person: Panny
Tel: +8613921181021
