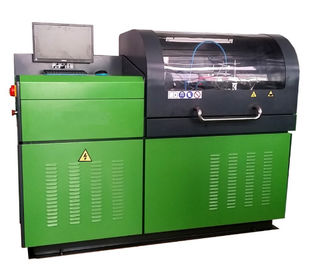

ADM8719,Common Rail Pump Test Bench, 6 / 12 Cylinders, 18.5Kw,2000Bar

ADM8719,Common Rail Pump Test Bench, 6 / 12 Cylinders, 18.5Kw,2000Bar

ADM8719,Common Rail Pump Test Bench, 6 / 12 Cylinders, 18.5Kw,2000Bar

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM8719

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Cylinders: 6 / 12 Color: Green/blue
Power: 18.5Kw Product Name: Common Rail Pump Test Bench
Rated Voltage: 220V|380V|415V Test Injector Brand: BOSCH|DELPHI|DENSO|SIEMENS


ADM8719, Common Rail System Test Bench, for testing common rail injectors and common rail pumps, Compressor Cooling method, LDC Distplay, measuring with sensor.


Quick Details

ADM8719 common rail test bench is our latest independent researched special device to test the

performance of high pressure common rail pump and injector, it can test common rail pump and injector ofBOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported high precise flow

meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also

obtained by computer. 19 LCD screen display makes the data more clear. ADM8719 can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced technology, steady

performance, precise measurement and convenient operation.


Indication: with flow meter

Test injector brand:BOSCH, DELPHI, DENSO, SIEMENS

Usage: Auto Testing Machine

Color: green blue yellow or on request

Power: Electronic


Main Specifications:

1.  Power: 18.5Kw

2.  Rated Voltage:220V/380V/415V

3.  Rated Voltage:50/60HZ

4.  Cylinders:6 / 12

5.  Speed Range:  0——4000rpm.

6.  Temperature Control Range:42℃ ,Accuracy:±2℃

7.  Fuel supply pressure range: 0—0.4Mpa

8.  Feed Volume Measurement Range:0.03----45L/H

9.  Return Volume Measurement Range:6----400L/H

10. Rail pressure: up to 2000Bar

11. Cooling capacity: 5000Kal (water cooling)

12. Weight:1080kgs


Main Characteristics:

1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4, DELPHI and SIMENS

2. Test the flow control valve of the common rail pumps.

3. Test the sealing of the CR injectors, the injection flow volume under full loaded, emission point, idling

and the pre-injection, also back flow volume.


Competitive Advantage:

  • Condition
  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience
  • Transport Terms: By Sea
  • Packing : wooden box

Technical Specification:

1.   Power

15KW  18.5Kw

2.   Rated Voltage


3.   Rated Voltage


4.   Speed Range


5.   Supply pressure of the testing fuel


6.   Fuel tank capacity


7.  Currency control range


8.  Injection width control range


9.   Injection volume range


10.  Backflow measuring range:


11.  Pressure control range


12.  Fuel temperature range


13.  Cooling method

Compressor cooling

14.  Cooling capacity:



Factory Pictures:

ADM8719,Common Rail Pump Test Bench, 6 / 12 Cylinders, 18.5Kw,2000Bar

ADM8719,Common Rail Pump Test Bench, 6 / 12 Cylinders, 18.5Kw,2000BarADM8719,Common Rail Pump Test Bench, 6 / 12 Cylinders, 18.5Kw,2000Bar
