|Cooling Method:||Compressor Cooling||Power:||18.5Kw|
|Product Name:||Common Rail System Test Bench||Rated Voltage:||220V|380V|415V|
|Fuel Tank Capacity:||80L||Feature:||High Pressure|

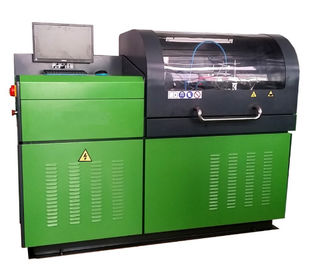

Common Rail System Test Bench
ADM8719, 18.5KW, 2000Bar, for testing different common rail injectors and common rail pumps, Compressor Cooling Method
1. Main motor power:18.5KW(25HP)；
2. Working voltage: 3 phase 220/380/415V, 50HZ/60HZ；
3. Speed range: 0—4000rpm；
4. Supply pressure of the testing fuel: 0—4bar；
5. Fuel tank capacity: 80L；
6. Currency control range: 0—3A；
7. Injection width control range: 100--3000µs；
8. Injection volume range: 0.1ML—2000ML/1000times；
9. Backflow measuring range: 6—400L/H；
10. Pressure control range: 0—2000BAR；
11. Fuel temperature range: 30--60℃；
12. Cooling method: Compressor cooling
13. Cooling capacity: 5000KAL
1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4, DELPHI
2. Test the flow control valve of the common rail pumps.
3. Test the sealing of the CR injectors, the injection flow volume under full-loaded,emission point, idling
and the pre-injection, also back flow volume.
ADM8719 Common Rail system test bench is our latest independent researched special device to test the performance,high pressure common rail pump and injector, it can test common rail pump and injector of BOSCH, SIEMENS,DELPHI and DENSO. It tests the common rail injector by imported high precise flow meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also obtained by computer. 19 LCD screen display makes the data more clear. ADM8719 can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced technology, steady performance, precise measurement and convenient operation.
