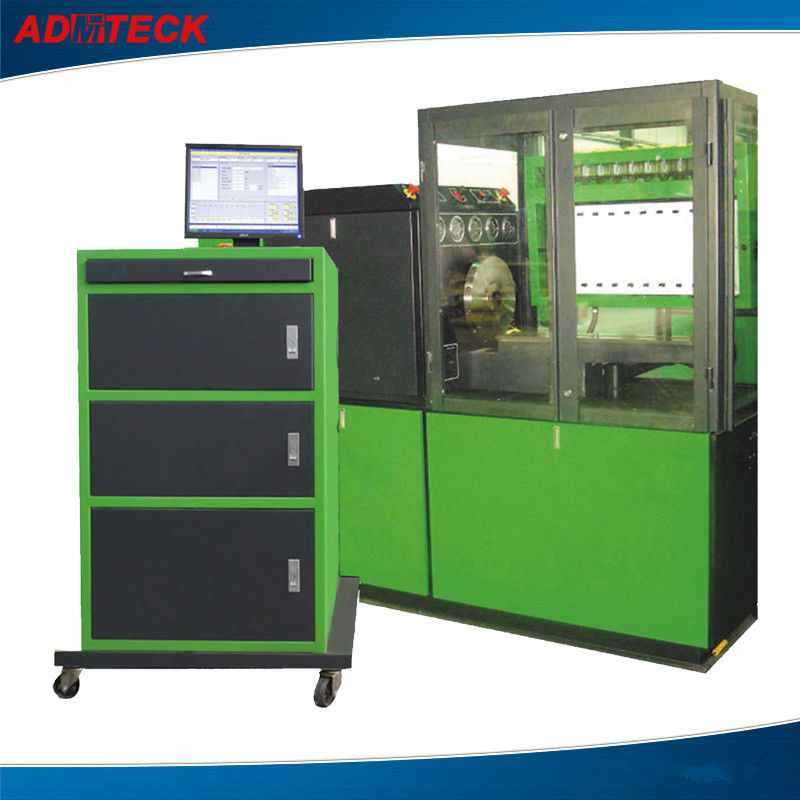

ADM800GLS, Common Rail Pump Test Bench, 11Kw/15Kw/18.5Kw/22Kw,measuring with cups

ADM800GLS, Common Rail Pump Test Bench, 11Kw/15Kw/18.5Kw/22Kw,measuring with cups

ADM800GLS, Common Rail Pump Test Bench, 11Kw/15Kw/18.5Kw/22Kw,measuring with cups

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM800GLS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Speed Range: 0 - 4000rpm Color: Blue/green
Power: 11Kw/15Kw/18.5Kw/22Kw Product Name: Common Rail Pump Test Bench
Rated Voltage: 220V|380V|415V Feature: Automatic

ADMTECK

ADM800GLS, can test common rail injectors, common rail pumps, and machenical fuel pumps. Measuring with cups,2000Bar


Quick Details


For testing and calibrating:
1. Mechanical in-line pumps and distributor pumps
2. Electronic control VE pumps and in-line pumps  high pressure common rail pumps:
 BOSCH CP1, CP2, CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3. Common rail injectors
4. The testing database could be updated
5. Check and calibrate automatically and give out the testing report
6. With industrial computer, more stable and reliable


 Technical Specification:



1.   Power

11Kw,15Kw,18.5Kw,22Kw etc

2.   Rated Voltage

220V/380V/415V

3.   Rated Voltage

50/60HZ

4.   Cylinders

6 / 12

5.   Speed Range

0—4000rpm

6.   Temperature Control Range

42℃ ,Accuracy:±2℃

7.   Backflow pressure control range

0—3 bar

8.   Feed Volume Measurement Range

0----45L/H

9.   Return Volume Measurement Range

0---400L/H

10.  Max pressure

2000 bar



Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience




Factory Pictures:


ADM800GLS, Common Rail Pump Test Bench, 11Kw/15Kw/18.5Kw/22Kw,measuring with cups
ADM800GLS, Common Rail Pump Test Bench, 11Kw/15Kw/18.5Kw/22Kw,measuring with cups
ADM800GLS, Common Rail Pump Test Bench, 11Kw/15Kw/18.5Kw/22Kw,measuring with cups
