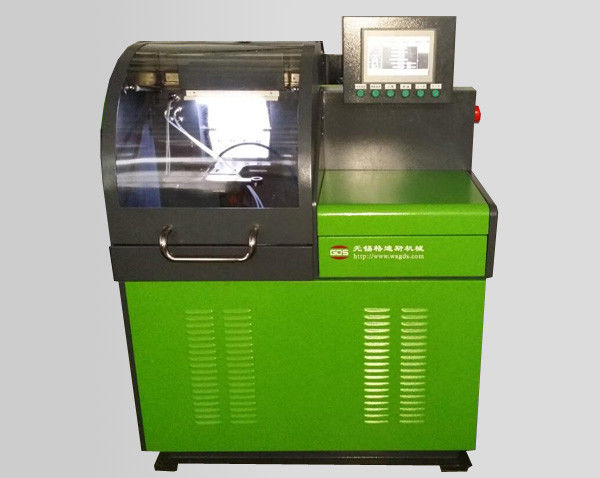

2000Bar Pressure Common Rail Injector Test Bench for testing Common Rail Injectors 4KW Power

2000Bar Pressure Common Rail Injector Test Bench for testing Common Rail Injectors 4KW Power

2000Bar Pressure Common Rail Injector Test Bench for testing Common Rail Injectors 4KW Power

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM9100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Cooling Method: Fan Cooling Product Name: Common Rail Injector Test Bench
Usage: Auto Testing Machine Power: 4Kw
Test Injector Brand: BOSCH|DELPHI|DENSO Working Voltage: 220V|380V|415V
Motor Speed Range: 2000Bar

ADMTECK

ADM9100, Common Rail Injector Test Bench, 4Kw,2000Bar, for testing different kinds of common rail injectors



Power: Electronic

Usage: Auto Testing Machine

Color: blue yellow or on request

Cooling method: Water Cooling or Fan Cooling

Temperature range: 30—50℃



For testing and calibrating:



Technical Specification:



1.   Power

4KW

2.  Variable frequency motor speed range

1000rpm

3.   Pressure  control range

10—2000bar

4.   Pressure control accuracy

±3bar

5.   Injection frequency setting range

100—1000 Times/min

6.   Metering range

20ml

7.   Fuel tank capacity

20L

8.  Filter accuracy

5µm

9.  Temperature range

30—50℃



Main functions:

1. Test common rail injectors of BOSCH,DELPHI,DENSO

2. Check the sealing of CR injectors

3. Check the backflow and the injection volume under full-loaded status

4. Test the injection volume at the emission point

5. Test the flow volume of idling status

6. Test the pre-injected volume of the CR injectors

7. Clean the injectors while testing

8. Testing data could be saved and printed

9. Standard parameters settable



Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience



Factory Pictures:

2000Bar Pressure Common Rail Injector Test Bench for testing Common Rail Injectors 4KW Power

2000Bar Pressure Common Rail Injector Test Bench for testing Common Rail Injectors 4KW Power
