ADM800SEN,11Kw/15Kw/18.5Kw/22Kw,6/12 Cylinder,2000Bar,test common rail injectors and common rail pumps and fuel pumps

China ADM800SEN,11Kw/15Kw/18.5Kw/22Kw,6/12 Cylinder,2000Bar,test common rail injectors and common rail pumps and fuel pumps supplier

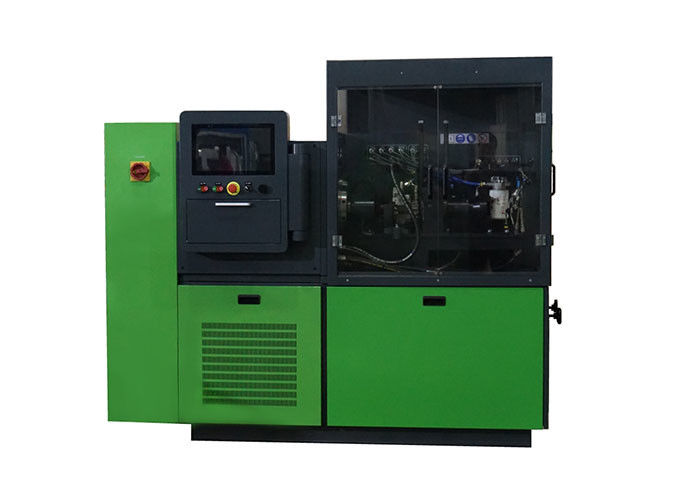

Large Image :  ADM800SEN,11Kw/15Kw/18.5Kw/22Kw,6/12 Cylinder,2000Bar,test common rail injectors and common rail pumps and fuel pumps

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM800SEN

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Cylinders: 6 / 12 Rated Voltage: 50/60HZ
Color: Green/blue/yellow Or On Request Power: Electronic
Product Name: Common Rail System Test Bench And Fuel Pump Test Bench Usage: Auto Testing Machine
Motor Power: 11Kw/15Kw|18.5Kw|22K Working Voltage: 220V|380V|415V
Cylinder: 6/12

ADMTECK

ADM800SEN, can test common rail injectors, common rail pumps,and machenical fuel pumps, measuring with sensors,



Technical Specification:

1. Power 11Kw,15Kw,18.5Kw,22Kw
2. Rated Voltage 3 phase,220V/380V/415V
3. Rated Voltage 50/60HZ
4. Cylinders 6 / 12
5. Speed Range 0—4000rpm
6. Temperature Control Range 42℃ ,Accuracy:±2℃
7. Backflow pressure control range 0—3 bar
8. Feed Volume Measurement Range 0----45L/H
9. Return Volume Measurement Range 0---400L/H
10. Max pressure

2000 bar



Cooling Method: Compressor Cooling

Cooling Capacity: 5000KAL



For testing and calibrating:

1. Mechanical in-line pumps and distributor pumps

2. Electronic control VE pumps and inline pumps high pressure common rail pumps: BOSCH CP1, CP2,

     CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP

3. Common rail injectors

4. The testing database could be updated

5. Check and calibrate automatically and give out the testing report

6. With industrial computer, more stable and reliable



ADM800SEN is our latest independent researched special device to test the performance of high-pressure common rail pump and injector, it can test common rail pump and injector of BOSCH, SIEMENS,

DELPHI and DENSO. It tests the common rail injector by imported high precise flow meter sensor, can test piezo,injector. It controlled by industrial computer by real time. The data is also obtained by computer. 19 LCD screen display makes the data more clear. M800SEN can fulfill the remote assistance by internet andmake the maintenance easy to operate.Advanced technology, steady performance, precise measurementand convenient operation.



Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience



Factory Pictures:

ADM800SEN,11Kw/15Kw/18.5Kw/22Kw,6/12 Cylinder,2000Bar,test common rail injectors and common rail pumps and fuel pumps

ADM800SEN,11Kw/15Kw/18.5Kw/22Kw,6/12 Cylinder,2000Bar,test common rail injectors and common rail pumps and fuel pumps

ADM800SEN,11Kw/15Kw/18.5Kw/22Kw,6/12 Cylinder,2000Bar,test common rail injectors and common rail pumps and fuel pumps
