4KW COMMOM RAIL INJECTOR TEST BENCH YELLOW ADM9200 WITH COMPUTOR

China 4KW COMMOM RAIL INJECTOR TEST BENCH YELLOW ADM9200 WITH COMPUTOR supplier

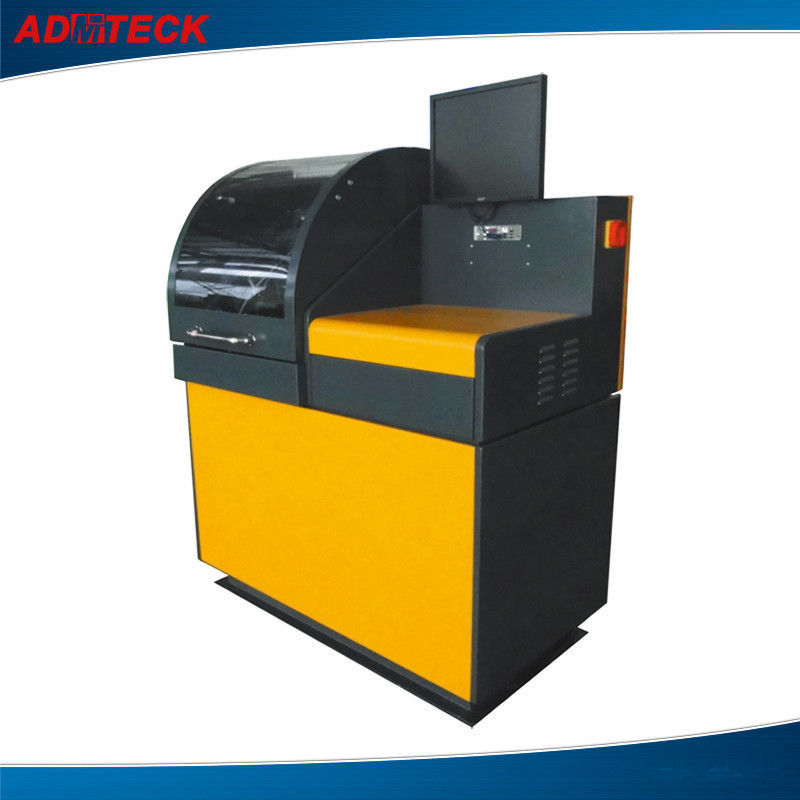

Large Image :  4KW COMMOM RAIL INJECTOR TEST BENCH YELLOW ADM9200 WITH COMPUTOR

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM9200

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD7,000
Packaging Details: PALLET
Payment Terms: T/T
Supply Ability: 5SET PER MONTH
Contact Now
Detailed Product Description
Motor Power: 4kw Type: ADM9200
Color: Yellow Or Other Cooling Method: Water Cooling Or Fan Cooling
Motor Speed Range: 0---2000rpm Test: BOSCH, DENSO,DELPHI,CATERPILLAR

4kw yellow Common Rail Injector Test Bench ADM9200 With Computor



Competitive Advantage:
Power: Electronic
Usage: Auto Testing Machine
Color: blue yellow or on request
Temperature range: 30—50℃
Motor power: 4Kw

Description:
Main functions:
1. Test common rail injectors of BOSCH,DELPHI,DENSO
2. Check the sealing  of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
10. Determine the injectors are good or bad automatically

Main technical specifications:
1. Motor power: 4Kw
2. Variable frequency motor speed range: 0—3000rpm
3. Pressure  control range: 10—2000bar
4. Pressure control accuracy: ±3bar
5. Injection frequency setting range:
     100—1500 Times/min
6. Metering range of the flow meter:
     0.1ml—2000ml/1000 times
7. Fuel tank capacity: 40L
8. Filter accuracy: 5µm
9. Temperature range: 30—50℃
