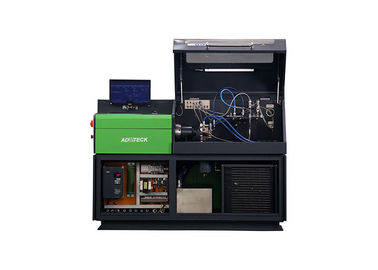

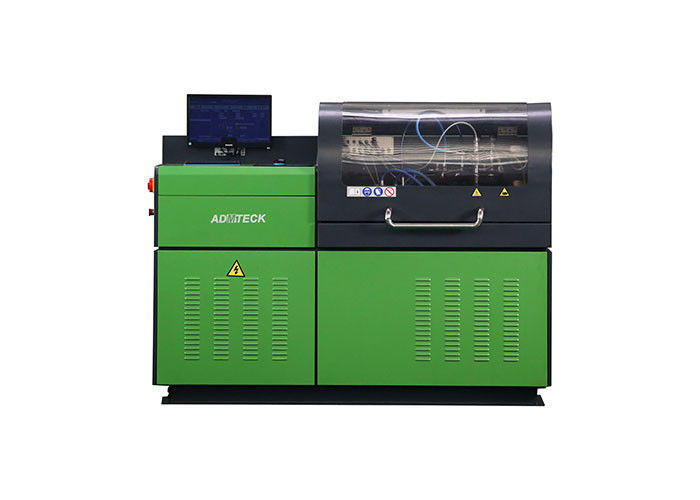

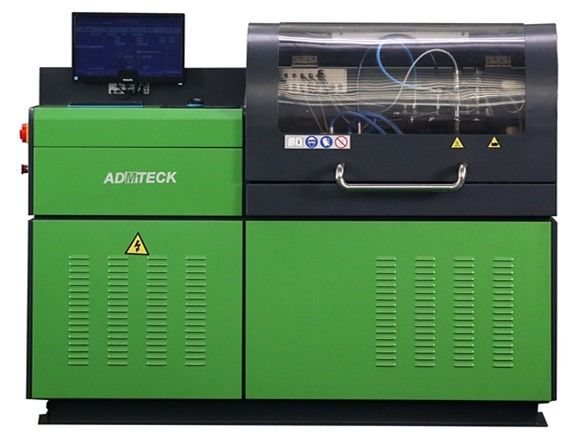

ADM8719,Water Cooling Common Rail Test Equipment Different Common Rail Injector and Pumps 18.5Kw

ADM8719,Water Cooling Common Rail Test Equipment Different Common Rail Injector and Pumps 18.5Kw

ADM8719,Water Cooling Common Rail Test Equipment Different Common Rail Injector and Pumps 18.5Kw

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM8719

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Power: 18.5kw Cooling Method: Water Cooling
Product Name: Common Rail Test Equipment Max Pressure: 2000 Bar
Test Injector Brand: BOSCH / DELPHI / DENSO / SIEMENS Speed Range: 0----4000rpm

ADMTECK

ADM8719, Common Rail System Test Bench, for testing and calibrating different common rail injectors and pumps, 18.5Kw,2000Bar



Quick Details



Power: 18.5Kw
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cooling capacity: 5000Kal (water cooling)
Speed Range: 0—4000rpm
Temperature Control Range: 42℃ ,Accuracy:±2℃

Return Volume Measurement Range: 6---400L/H
Fuel supply pressure range: 0----0.4Mpa
Feed Volume Measurement Range: 0.03----45L/H
Rail pressure: up to 2000 bar



For testing and calibrating:



1.For the testing of different common rail pumps

   BOSCH: CP1, CP2, CP3 pumps

   DENSO: HP0, HP3, HP4

   DELPHI pumps

2. For the testing of common rail injectors of BOSCH, DENSO, DELPHI





Technical Specification:



1.   Power

18.5Kw

2.   Rated Voltage

220V/380V/415V

3.   Rated Voltage

50/60HZ

4.   Speed Range

0—4000rpm

5.   Fuel supply pressure range

0----0.4Mpa

6.   Temperature Control Range

42℃ ,Accuracy:±2℃

7.   Feed Volume Measurement Range

0.03----45L/H

8.   Return Volume Measurement Range

6---400L/H

9.   Cooling capacity

5000Kal (water cooling)





Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • Power: Electronic
  • Usage: Auto Testing Machine
  • More Than 10 Years Experience

Factory Pictures
ADM8719,Water Cooling Common Rail Test Equipment Different Common Rail Injector and Pumps 18.5Kw
ADM8719,Water Cooling Common Rail Test Equipment Different Common Rail Injector and Pumps 18.5Kw
ADM8719,Water Cooling Common Rail Test Equipment Different Common Rail Injector and Pumps 18.5Kw
