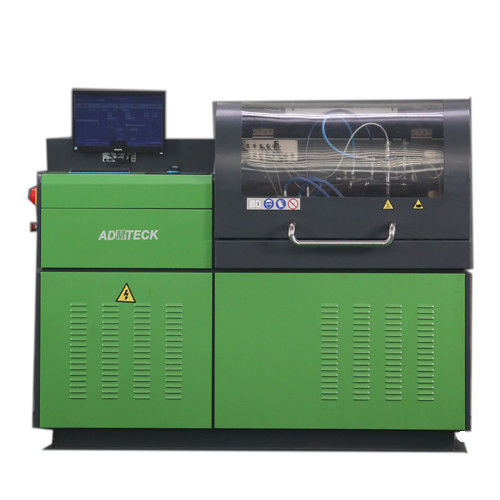

ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps

ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps

    • ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps
    • ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps
  • ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps

    Product Details:

    Place of Origin: CHINA
    Brand Name: ADMTECK
    Certification: CE
    Model Number: ADM8715

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Polyboard
    Delivery Time: TWO WEEKS
    Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
    Supply Ability: 50SETS
    Contact Now
    Detailed Product Description
    Brand Name: ADM Speed Range: 0----4000rpm
    Power: Electronic Fuel Supply Pressure Range: 0----0.4Mpa
    Application: BOSCH / DENSO / DELPHI Usage: Auto Testing Mechine
    Temperrature Control Range: 30--60℃ Cooling Capacity: 5000Kal (compressor Cooling)



    ADMTECK ADM8715,15KW, advanced common rail system test bench, with top technology of mould, for testing different kinds of common rail injectors and pumps.



    Main parameters:



    1. Main motor power:15KW(20HP) ;

    2. Working voltage: 3 phase 220/380/415V, 50HZ/60HZ;

    3. Speed range: 0—4000rpm;

    4. Supply pressure of the testing fuel: 0—4bar;

    5. Fuel tank capacity: 80L;

    6. Currency control range: 0—3A;

    7. Injection width control range: 100--3000µs;

    8. Injection volume range: 0.1ML—2000ML/1000times;

    9. Backflow measuring range: 1—600L/H;

    10. Pressure control range: 0—2000BAR;

    11. Fuel temperature range: 30--60℃;

    12. Cooling method: Compressor cooling

    13.Cooling capacity: 5000KA



    Main functions:



    1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,

    HP2,HP3,HP4, DELPHI and SIMENS.

    2. Test the flow control valve of the common rail pumps.

    3. Test the sealing of the CR injectors,Piezo injector, the injection flow volume under full-loaded, emission point, idling and the pre-injection, also back flow volume.



    Why Choose Us

    • Top technology of mould r&d, manufacturing, die steel, heat treatment
    • Experienced professional engineers
    • Advanced equipment

    Electronic Control System Picture:



    ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps



    Cooling System and Fuel Tank Picture:



    ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps



    For the Fuel Pump and Pump Flowmeter Picture:



    ADM8715,15KW, Common Rail System Test Bench, for testing different kinds of Common Rail Injectors and Pumps
