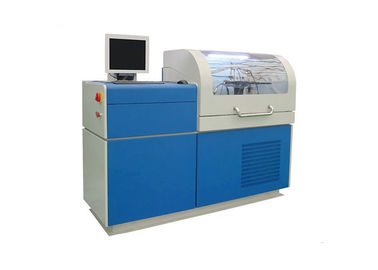

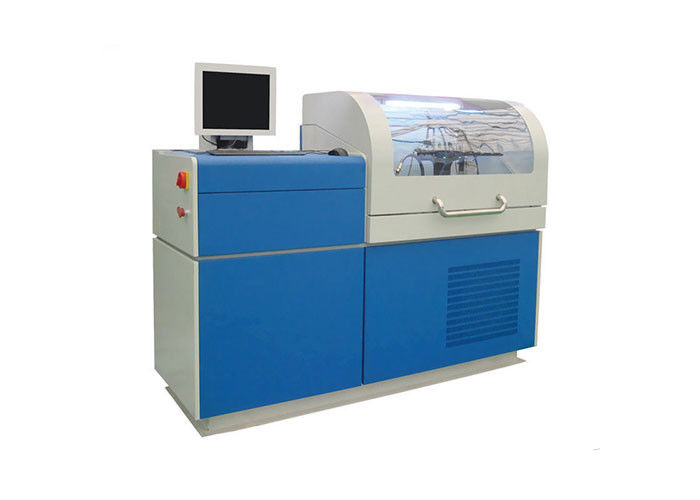

ADM8719,18.5Kw,3 phase ,automatic Electronic Common Rail pump Test Bench with flow meter

ADM8719,18.5Kw,3 phase ,automatic Electronic Common Rail pump Test Bench with flow meter

ADM8719,18.5Kw,3 phase ,automatic Electronic Common Rail pump Test Bench with flow meter

Product Details:

Place of Origin: CHINA
Brand Name: ADMTECK
Certification: CE
Model Number: ADM8719

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Working Voltage: 3 Phase Color: Blue/green
Power: 18.5Kw Product Name: Common Rail Pump Test Bench
Rated Voltage: 220V|380V|415V Indication: With Flow Meter

ADMTECK

ADM8719, Common Rail Pump Test Bench,18.5Kw, 3 phase,automatic Electronic Common Rail pump Test Bench with flow meter



Quick Details

Indication: with flow meter

Test injector brand: BOSCH, DELPHI, DENSO, SIEMENS

Usage: Auto Testing Machine

Color: green blue yellow or on request

Power: Electronic



Common rail test bench ADM8719:

  ADM8719 common rail test bench is our latest independent researched special device to test the

  performance of high pressure common rail pump and injector, it can test common rail pump and injector of BOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported high precise flow meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also obtained by computer. 19 LCD screen display makes the data more clear. ADM8719 can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced technology, steady performance, precise measurement and convenient operation.



Competitive Advantage:

  • Condition
  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience
  • Transport Terms: By Sea
  • Packing : wooden box



Main Characteristics:

MAIN FUNCTIONS:

1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4, DELPHI and

SIMENS

2. Test the flow control valve of the common rail pumps.

3. Test the sealing of the CR injectors, the injection  flow volume under full-loaded, emission point, idling and the

pre-injection, also back flow volume.

Main parameters:

1. Main motor power:15KW(20HP),18.5KW(25HP);

2. Working voltage: 3 phase 220/380/415V,    50HZ/60HZ;

3. Speed range: 0—4000rpm;

4. Supply pressure of the testing fuel: 0—4bar;

5. Fuel tank capacity: 80L;

6. Currency control range: 0—3A;

7. Injection width control range: 100--3000µs;

8. Injection volume range: 0.1ML—2000ML/1000times;

9. Backflow measuring range: 6—400L/H;

10. Pressure control range: 0—2000BAR;

11. Fuel temperature range: 30--60℃;

12. Cooling method: Compressor cooling

13. Cooling capacity: 5000KALTechnical Specification:





1.  Power: 15Kw, 18.5Kw2.  Rated Voltage:220V/380V/415V

3.  Rated Voltage:50/60HZ

4.  Cylinders:6 / 12

5.  Speed Range:  0——4000rpm.

6.  Temperature Control Range:42℃ ,Accuracy:±2℃

7.  Fuel supply pressure range: 0—0.4Mpa

8.  Feed Volume Measurement Range:0.03----45L/H

9.  Return Volume Measurement Range:6----400L/H

10. Rail pressure: up to 2000Bar

11. Cooling capacity: 5000Kal (water cooling)

12. Weight:1080kgs



1.   Power

15KW  18.5Kw

2.   Rated Voltage

220V/380V/415V

3.   Rated Voltage

50/60HZ

4.   Speed Range

0—4000rpm

5.   Supply pressure of the testing fuel

0—4bar

6.   Fuel tank capacity

 80L

7.  Currency control range

0—3A

8.  Injection width control range

100--3000µs

9.   Injection volume range

0.1ML—2000ML/1000times

10.  Backflow measuring range:

6—400L/H

11.  Pressure control range

0—2000BAR

12.  Fuel temperature range

30--60℃

13.  Cooling method

Compressor cooling

14.  Cooling capacity:

5000KAL



Factory Pictures:



ADM8719,18.5Kw,3 phase ,automatic Electronic Common Rail pump Test Bench with flow meter

ADM8719,18.5Kw,3 phase ,automatic Electronic Common Rail pump Test Bench with flow meter

ADM8719,18.5Kw,3 phase ,automatic Electronic Common Rail pump Test Bench with flow meter
