ADM8725 Test Common Rai Injectors And Pumps EUI/EUP HEUI

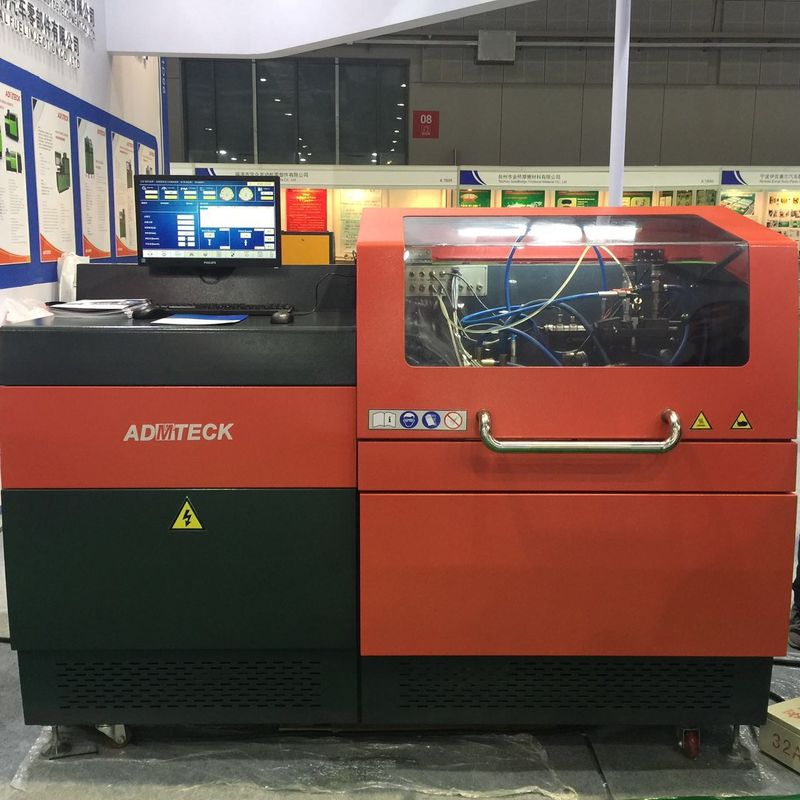

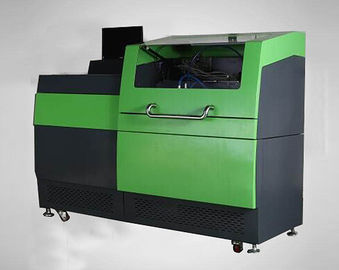

ADM8725 Common Rail System Test Bench, testing and calibrating different common rail injectors and pumps,

Main Functions:

1. Test common rail injectors of BOSCH, DENSO, DELPHI, CUMMINS, ERPILLAR, domestic and

     foreign etc.

2. Test piezoelectric injectors of BOSCH, DENSO, DELPHI, VDO etc.Major projects of test injectors:

     Sealing, the backflow and the injection volume under full-loaded status, injection volume at the

      emission point, the flow volume of idling status, pre-injected volume of the injectors.

3. Test the performance of common rail fuel injection pumps: BOSCH, DENSO, DELPHI, CUMMINS,

     ERPILLAR, the change characteristics of solenoid valve electricity and fuel flow.Add accessories

     satisfy the test requirements:

4. Test HEUI injector and oil pump.

5. Test EUI/EUP.

6. Test electronic control VE pump.

7. Test electronic control distributor pumps of DENSO V3, V4.Edit current driving characteristics of

     common rail injector.Internal containing thousands of various types of common rail fuel injection pump,

     common rail injector test standard data.

8. Testing data could be saved and exported.

9. Establish customer files.

10. Customers can calibrate the injector without standard data. Add accessory test injection the response

      time of injectors.Bosch injector can produce QR codes. (Additional payment).

Main Specifiion:

1. Power: 11Kw,15Kw,18.5Kw

2. Rated Voltage: 220V/380V/415V

3. Rated Voltage: 50/60Hz

4. Cylinders: 6/12

5. Speed Range : 0----5000rpm

6. Temperature Control Range : 42℃, Accuracy:±2℃

7. Fuel supply pressure range: 0----0.4Mpa

8. Feed Volume Measurement Range: 0.1ml----2000ml

9. Return Volume Measurement Range: 1----600L/H

10. Rail pressure: UP TO 2500Bar

11. Cooling capacity: 5000Kal
