12 Cylinders ADM720 Mechanical Fuel Pump Test Bench For Testing Different Pumps

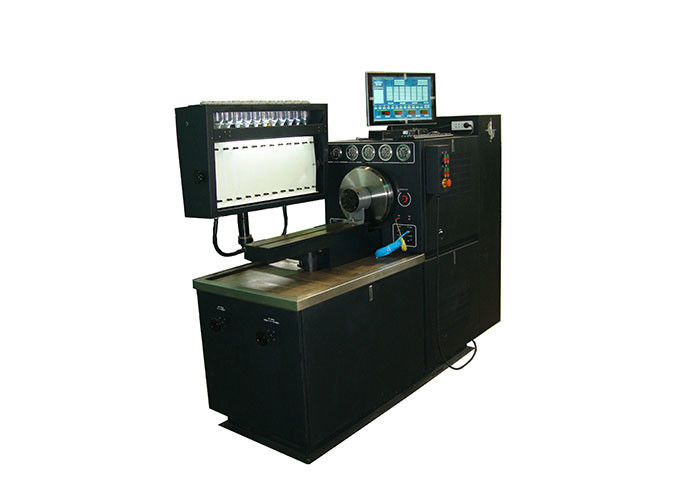

 ADM720 Mechanical Fuel Pump Test bench,for testing Different Pumps,

Description :

5.5KW/7.5KW/11KW/15KW/18.5 KW/22KW (25HP) AC high torque motor.

Industrial fan les PC with Windows TM Professional operating system fully integrated 15'' XGA 450 nits TFT-LCD sunlight readable (for easy reading).

Anti Backlash coupling.

Two DC supply 12-24 Volts 3 Amps.

Pressure phasing to 80 Bar.

Fully automatic Fuel Temperature Control System.

Direct Drive System- DDS.

Forced lubriion pump oil to 30 Bar.

Analogue speed potentiometer for manual speed control.

Digital speed control system provides smooth speed control between 0-4000 rpm via a multi turn precision speed control knob.

Data base system management for test plan/customer records.

12 cylinders low volume / high volume glass reading deliveries for easy operating.

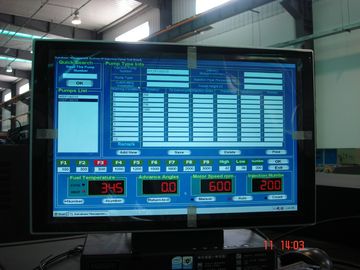

Display of main features of test bench operating parameters via 15'' TFT/LCD.

Electronic Feedback System prevents speed changes in load variances by monitoring the speed and load relation during the entire run time.

Larger flywheel inertia provides more stable speed Control.

New measuring console with two axis of motion.

New control panel provides for a user friendly operation.

Well tooled standard accessory package for most common Rotary and Inline pumps.

Sophistied NEW design

The ADM720 will create a new image of your workshop with its design and colours and provide you the best operating, friendlier and ergonomically designed environment.

Anti-backlash coupling

The Anti-Backlash coupling ensures the safety of the test bench operator with its durable and strong design and provides reliable testing of the new technology high-pressure fuel injection pumps.

The flywheel

Directly mounted on the motor shaft and with 1,0 kgm² inertia provides a smooth drive of even the toughest cam profiles, and absorbs the impact of the new pumps. The test results obtained are therefore much more reliable and accurate comparing with smaller flywheel drive systems.

Technical specifiion :

1. Motor power:.5.5,7.5,11,15,18.5,22kw

2. Power supply voltage:415,380,220v

3. Power supply frequency:50/60 HZ

4. Protection level:IP54

5. Speed range:0-4000 rpm

6. Counter setting range:0-9999

7. Temperature setting range:0-80

8. Center height of driving shaft:125mm

9. DC power:12/24V

10. Diameter of the Driving connector:120mm

11. Measuring tube:45ml,150ml,260ml(optional)

12. Number of Measuring cylinder:12

13. Oil Supply pump:10L/min

14. Fuel supply pressure: High pressure:0-40bar;low perssure:0-4bar

15. Fuel tank cubage:60L

16. Pressure meter: Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressure:-1-2.5bar;Oil meter:0-10bar

17. Heat Power:2kw

18. Temperature controlled range: 40±2ºC

19. Size:2000*1060*1800mm

20. Weight:950kg

Function

1. Fuel delivered of each cylinder on any speed can be tested

2. Speed, temperature, counter, pressure, Rack meter can be displayed on the computer of test bench.

3. Rack traveling curve can be displayed

4. LCD monitor

5. Directly driven by motor, variable frequency stepless speed regulation.

6. Static inspection on the delivery time of each cylinder

7. Inspection on Performance of the mechanical governor

8. Inspection on performance of the solenoid valve of VE pump

9. Inspection on performance of the pneumatic governor

10. Inspection on the performance of the Pressure Compensator

11. Oil returned volume of distribute pump

12. Inspection on the Inner pressure of the VE pump

13. Inspection on the performance of the minus pressure of pneumatic governor

14. Inspection on Pump body sealing performance

Competitive Advantage:

Advantages with ranges of adjustment speed, stable speed, large torque, easy operation and so on.

Accessories for test bench (47PCS)

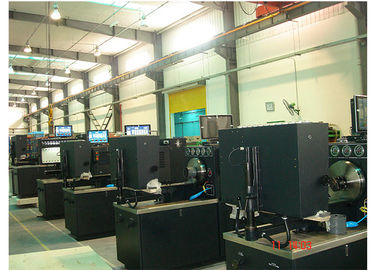

Pictures:
