| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM9180 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polyboard |
| Delivery Time: | Two weeks |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Motor Powe: | 4 Kw | Injection Frequency Setting Range: | 100-1500Times/min |
|---|---|---|---|
| Driving Currenvy Of The Injector(Max): | 28A | Injection Time: | 100----3000us |
| Pressure Control Range: | 10-2000Bar | Fuel Tank Capacity: | 20L |
| Temperature Control Range: | 30-50℃ | Pressure Control Accuracy: | ±3Mpa |
| High Light: | common rail diesel injector test bench,common rail test equipment |
||

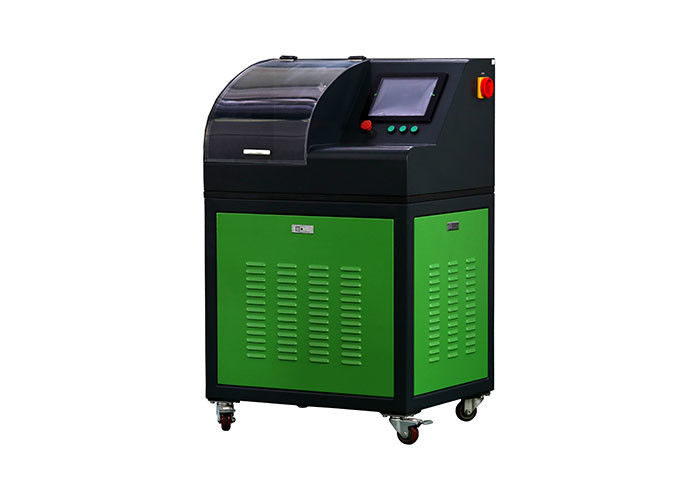

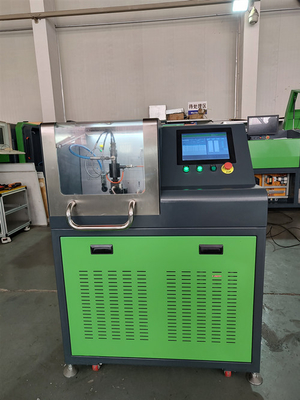

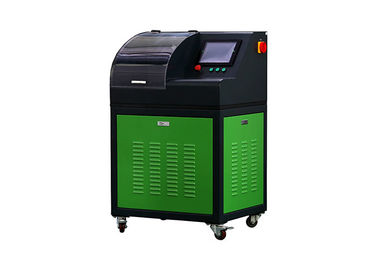

ADM9180 Common Rail Injector Test Bench could test the leakage and the flow volumes
Main Specifiions:
| 1.Motor power | 4KW |
| 2.Pressure control range | 10-2000bar |
| 3.Pressure control accuracy | ±3bar |
| 4.Injection frequency setting range | 100-1500Times/min |
| 5.Metering range of the flow meter | 0.1ml-2000ml/1000times |
| 6.Fuel tank capacity | 20L |
| 7.Filter accuracy | 3um |
| 8.Temperature range | 30-50℃ |
Main Functions:
1.Test common rail injectors of BOSCH, DELPHI, DENSO
2.Check the sealing of CR injectors
3.Check the backflow and the injection volume under full-loaded status
4.Test the injection volume at the emission point
5.Test the flow volume of idling status
6.Test the pre-injected volume of the CR injectors
7.Clean the injectors while testing
8.Testing data could be saved
9.Standard parameters settable
10.Determine the injectors are good or bad automatically
Competitive Advantage:
