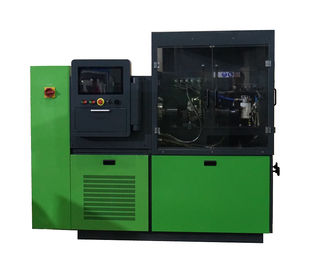

ADM825,2500Bar,11/15/18.5/22Kw,Common Rail System Test Bench

For testing and calibrating:

1.Mechanical in-line pumps and distributor pumps

2.Electronic control VE pumps and in-line pumps high pressure common rail pumps: BOSCH CP1, CP2, CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP

3.Common rail injectors,BOSCH DENSO DELPHI CAT CUMMINS VDO

4.Test HEUI injector and pump;

5.Test denso V3.V4 pump

6.Test CAT 320 D common rail pump

7.Test EUI/EUP ,HPI/ISX, QSK60 injector

8.The testing database could be updated

9.Bosch and Delphi c2i,c3i coding

10.Check and calibrate automatically give out the testing report

11.With industrial computer, more stable and reliable

1.Power: 20HP

2.Rated Voltage:220V/380V/415V

3.Rated Voltage:50/60HZ

4.Cylinders: 6/12

5.Speed Range: 0--4000rpm.

6.Temperature Control Range: 42℃, Accuracy:±2℃

7.Backflow pressure control range:0--3 bar

8.Feed Volume Measurement Range:0--45L/H

9.Return Volume Measurement Range:0--400L/H

10.Max pressure:2500 bar
