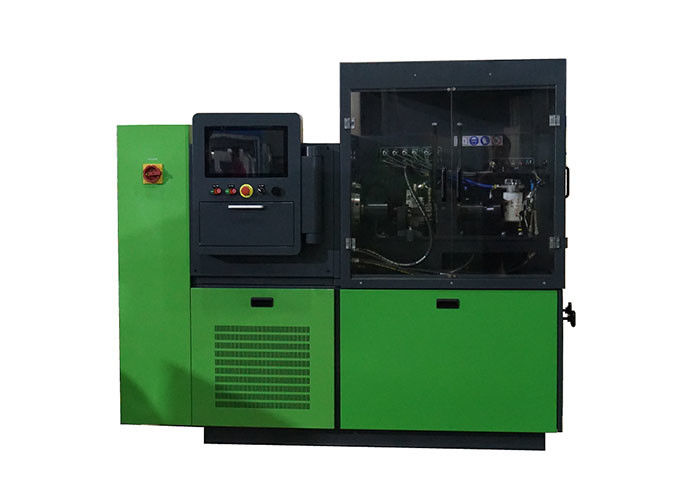

11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors

11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors

  • 11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors
11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors
Product Details:
Place of Origin: CHINA
Brand Name: ADMTECK
Model Number: ADM 8800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Color: Green Max Pressure: 2500 Bar
Power: 11KW/15KW/18.5KW/22KW Product Name: Common Rail Pump Test Bench
Rated Voltage: 220V/380V/415V Test Injector Brand: BOSCH/DELPH/DENSO/SIEMENS
Usage: Auto Testing Machine Cylinders: 6
High Light:

common rail diesel test equipment

,

diesel fuel injection pump test bench


ADM 8800,2500 Bar,Common Rail  Test  Bench

Quick Details

Usage: Auto Testing Machine
Power: Electronic

Main Specifiions:


Drive Motor:15KW,18.5KW,22KW,30KW
Power Supply:3-380V/50HZ,3-220V/60HZ,3-415V/50HZ.
Speed Range:0-5000rpm
Injector Flowmeter Range :0.1-4000 ml/min
Pump Flowmeter Range :0.1-16L/min
Oil Flowmeter Range :0.1-16L/min
Display:19”
Common Rail Pump:BOSCH CP4
Common Rail :BOSCH
FilterBOSCH
Test Range Of Rail Pressure0-2700Bar
Test Channel1-6Cyl
Fuel Supply Pump19I/min
Fuel Supply Pressure:0-15Bar
Test Fuel Tank:60L
Heater Power2kw
Oil Supply Pump10I/min
Oil Supply Pressure:0-10Bar
Test Oil Tank:30L
HEUI Oil Pressure Range10-250Bar
Fuel Cooling UnitCompressor Cooling
Power Cable5Pin
Dimensions2200x1000x1810mm
Paking Dimensions2300x1100x2000mm
Weight :1050kg


common rail pump and injector test bench:

ADM 8800  common rail test bench is our latest independent researched special device to test the
performance of high-pressure common rail pump and injector, it can test common rail pump and
injector of BOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported
high precise flow meter sensor, can test piezo injector. It controlled by industrial computer by real time.
The data is also obtained by computer. 19 LCD screen display makes the data more clear. M800SEN
can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced
technology, steady performance, precise measurement and convenient operation.

Main Functions:


Test BOSCH DENSO DELPHI CATERPILLER CUMMINS L'ORANGE JOHN DEERE Solenoid valve and Piezo injectors
Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps
Test HEUI CATERPILLAR C7.C9.3126B/3126C. 3408/3412 .NAVISTAR FORD 6.0.ISUZU TROOPER Injectors
Test Caterpillar HEUI Pumps
Test EUI/EUP ( With Cam-Box)
Test BOSCH VP37 Pump
Test DENSO V3 V4 Pumps
Tests the seal performance of injectors and delivery under different working conditions as follows:-
Pre-injection
Idle
Mid-range
Max fuel
Automatically measures and displays delivered fuel quantity
There are thousands of standard test plans for various types of fuel injectors
BOSCH (IMA ISA ) DENSO (QR) DELPHI (C2I C3I) SIMENS (IIC) BOSCH NCC VCC TESTING
Customers can test new injectors and automatically generate new test plans
Response time test
Resistance, inductance, capacitance measurement
Short circuit protection
Create customer files
Generate test report
Free updates
One year warranty


Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience

Factory Pictures:
11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors 0
11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors 1
11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors 2
11KW -22KW 2500Bar Common Rail Pump Test Bench , measuring with sensors 3
