| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM700 |
| Certifiion: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PALLET |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment L/C Western Union |
| Supply Ability: | 50SETS |
| Feature: | Industrial Pc | Speed: | Adjustment |
|---|---|---|---|
| Color: | Blue | Cylinders: | 12 |
| Power: | 5.5kw|7.5kw|11kw|15kw|18.5kw|22kw | Rated Voltage: | 415V|380V|220V |
| High Light: | fuel injection pump tester,diesel fuel pump test bench |
||

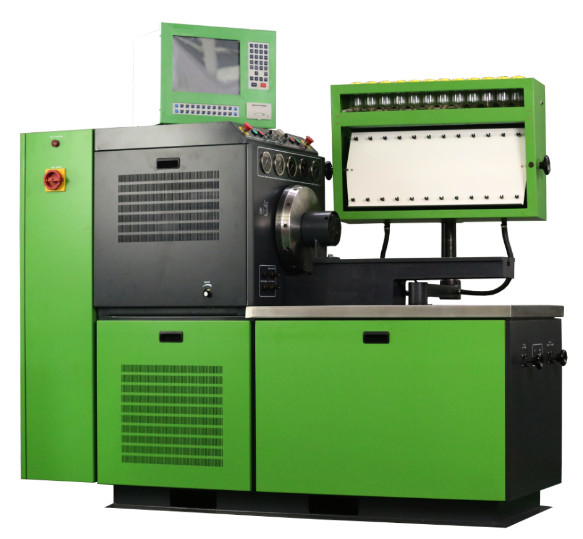

adjustment speed electric diesel injection fuel pump test bench with industrial pc 15KW
Quick Detail:
Adjustable cylinders 12
Capability with pump type: All in- line and rotary pumps
Packaging Detail: Fumigation-free Wooden Case
Delivery Detail: Within Two Weeks After Order Confirmation
Function:
1. Inspection on Pump body sealing performance
2. Inspection on the Inner pressure of the VE pump
3. Controlled by the digital control unit or computer
4. 15'', 17''CRT or LCD monitor
5. Directly driven by motor, variable frequency stepless speed regulation.
6. Static inspection on the delivery time of each cylinder
7. Inspection on Performance of the mechanical governor
8. Inspection on performance of the solenoid valve of VE pump
9. Inspection on performance of the pneumatic governor
10.Inspection on the performance of the minus pressure of pneumatic governor
11. Oil returned volume of distribute pump
12. Speed, temperature, counter, pressure, Rack meter can be displayed on the computer of test bench.
13. Fuel delivered from each cylinder on any speed can be tested
Technical specifiion:
|
Motor power |
5.5 - 22kw |
|
Power supply voltage |
415,380,220v |
|
Power supply frequency |
50/60 HZ |
|
Protection level |
IP54 |
|
Speed range |
0-4000 rpm |
|
Counter setting range |
0-9999 |
|
Temperature setting range |
0-80 |
|
Center height of driving shaft |
125mm |
|
DC power |
12/24V |
|
Diameter of the Driving connector (mm) |
120mm |
|
Measuring tube |
45ml,150ml,260ml(optional) |
|
Number of Measuring cylinder |
6,8,12 |
|
Oil Supply pump |
10L/min |
|
Oil supply pressure: High pressure |
0-40bar |
|
Oil supply pressure: low pressure |
0-4bar |
|
Oil tank cubage |
60L |
|
Heat Power |
2 kw |
|
Temperature controlled range |
30-65 c |
|
Size |
2100*1060*1750mm |
|
Weight |
950kg |
Description:

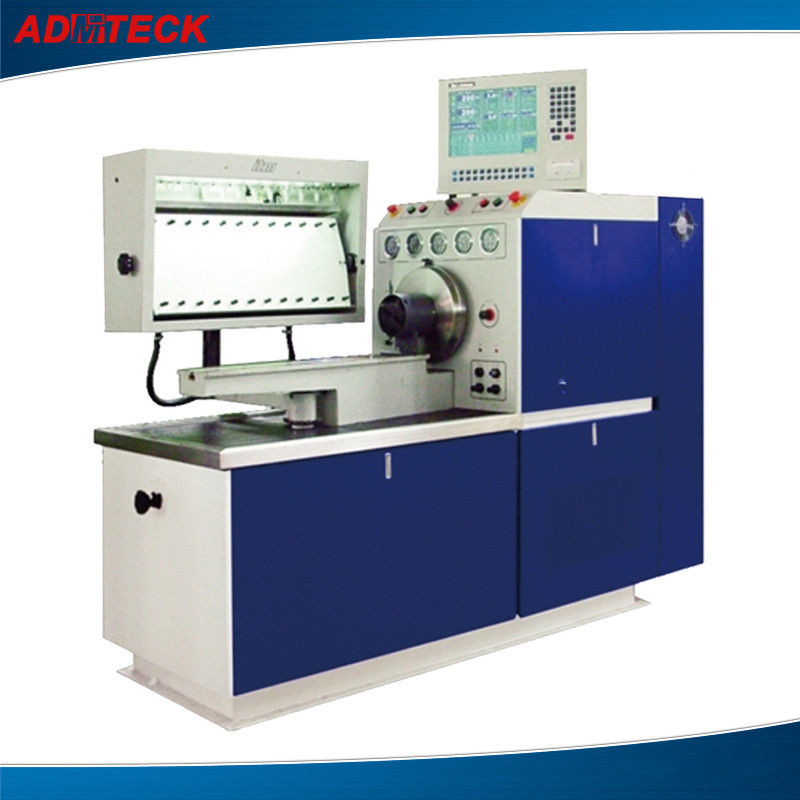

ADM700 diesel fuel injection pump test bench adopts industrial pc with color CRT , it is the newly
researched device for the direction of high power and environment protection. It has human-machine
interface, digital control of rpm, temperature, pressure, diesel fuel pump technical parameter etc. and
prints synchronously. It is operated easily and quickly and human machine dialog realized. The test bench is installed with high quality frequency conversing device and cast-iron based
supper size bed. Its distinguished features are hi- stability, hi-reliability, ultra-low-noise,
perfect auto-protecting function etc. It is the most advanced device in this line
Competitive Advantage:
