| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM9200 |
| Certifiion: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polyboard |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Supply Ability: | 50SETS |
| Color: | Green | Feature: | High Precision |
|---|---|---|---|
| Product Name: | Common Rail Test Equipment | Usage: | Auto Testing Machine |
| Power: | 4Kw | Test Injector Brand: | BOSCH|DELPHI|DENSO |
| Working Voltage: | 220V|380V|415V | ||
| High Light: | common rail diesel test equipment,common rail injector test bench |
||
ADMTECK

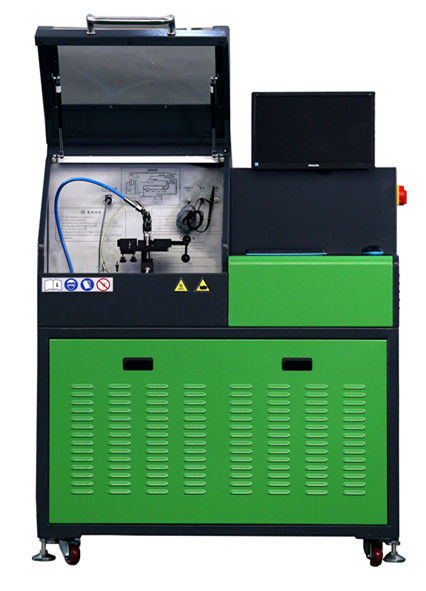

ADM9200, Common Rail Injector Test Bench
Description:
Main functions:
1. Test common rail injectors of BOSCH,DELPHI,DENSO
2. Check the sealing of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
10. Determine the injectors are good or bad automatically
Main technical specifiions:
1. Motor power: 4Kw
2. Variable frequency motor speed range: 0—3000rpm
3. Pressure control range: 10—2000bar
4. Pressure control accuracy: ±3bar
5. Injection frequency setting range:
100—1500 Times/min
6. Metering range of the flow meter:
0.1ml—2000ml/1000 times
7. Fuel tank capacity: 40L
8. Filter accuracy: 5µm
9. Temperature range: 30—50℃
10.Cooling Method: Water Cooling or Fan Cooling
Technical Specifiion:
|
1. Motor power |
4Kw |
|
2. Variable frequency motor speed range |
0—3000rpm |
|
3. Pressure control range |
10—2000bar |
|
4. Pressure control accuracy |
±3bar |
|
5. Injection frequency setting range |
100—1500 Times/min |
|
6. Metering range of the flow meter |
0.1ml—2000ml/1000 times |
|
7. Fuel tank capacity |
40L |
|
8. Filter accuracy |
5µm |
|
9. Temperature range |
30—50℃ |
Competitive Advantage:
Factory Pictures:
