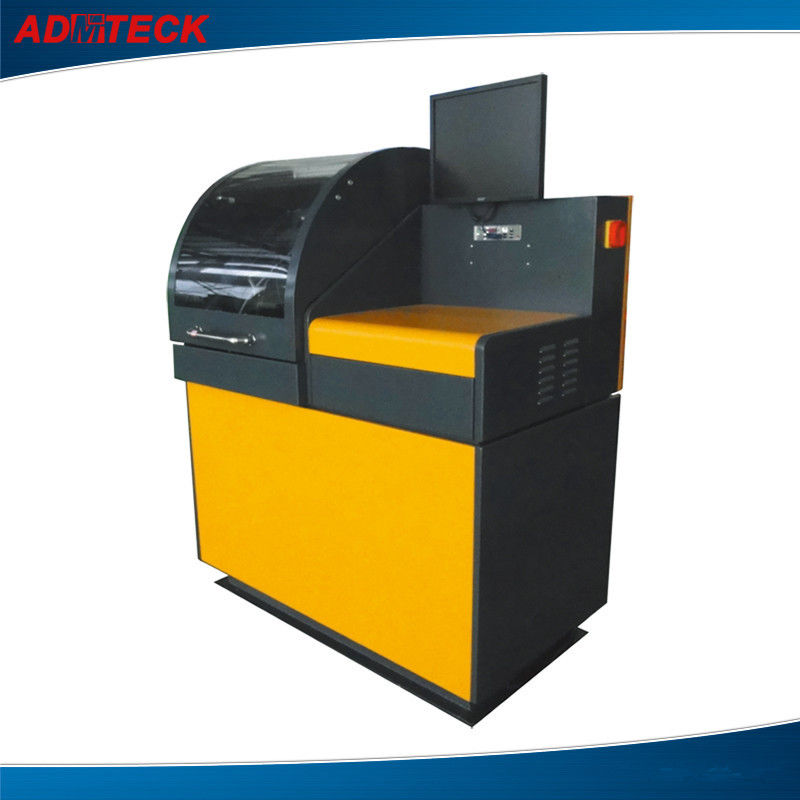

ADM9200 Common Rail Injector Tester ADMTECK

ADM9200 Common Rail Injector Tester ADMTECK

ADM9200 Common Rail Injector Tester ADMTECK
ADM9200 Common Rail Injector Tester ADMTECK
ADM9200 Common Rail Injector Tester ADMTECK
Product Details:
Place of Origin: CHINA
Brand Name: ADMTECK
Model Number: ADM9200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: PALLET
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment L/C Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Color: Yellow Fuel Tank Capacity: 40L
Power: Electronic Product Name: Common Rail Injector Test Bench
Usage: Auto Testing Machine Motor Power: 4Kw
Highlight:

ADMTECK Common Rail Injector Tester

,

ADM9200 Common Rail Injector Tester

 Common Rail Injector Tester
Quick Details

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience
  • NEW DESIGN
  • EASY TO MAINTAIN
  • Pump body sealing performance
  • High-precision flow meter

Competitive Advantage:
Power: Electronic
Usage: Auto Testing Machine
Color: blue yellow or on request
Temperature range: 30—50℃
Motor power: 4Kw

Description:
Main functions:
1. Test common rail injectors of BOSCH,DELPHI,DENSO
2. Check the sealing  of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
10. Determine the injectors are good or bad automatically

Main technical specifiions:
1. Motor power: 4Kw
2. Variable frequency motor speed range: 0—3000rpm
3. Pressure  control range: 10—2000bar
4. Pressure control accuracy: ±3bar
5. Injection frequency setting range:
     100—1500 Times/min
6. Metering range of the flow meter:
     0.1ml—2000ml/1000 times
7. Fuel tank capacity: 40L
8. Filter accuracy: 5µm
9. Temperature range: 30—50℃

  Technical Specifiion:

1.  Motor power

4Kw

2.  Variable frequency motor speed range

0—3000rpm


3.   Pressure  control range

10—2000bar

4.   Pressure control accuracy

±3bar

5.   Injection frequency setting range

 100—1500 Times/min

6.   Metering range of the flow meter

0.1ml—2000ml/1000 times

7.   Fuel tank capacity

40L

8.   Filter accuracy

5µm

9.  Temperature range

30—50℃


Factory Pictures:
ADM9200 Common Rail Injector Tester ADMTECK 0
ADM9200 Common Rail Injector Tester ADMTECK 1
