| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM9100 |
| Certifiion: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polyboard |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Supply Ability: | 50SETS |
| Color: | Blue | Fuel Tank Capacity: | 40L |
|---|---|---|---|
| Power: | Electrical | Product Name: | Common Rail Injector Test Bench |
| Usage: | Auto Testing Machine | Motor Power: | 4Kw |
| High Light: | common rail diesel injector test bench,common rail test equipment |
||
ADMTECK

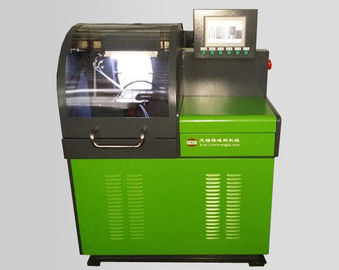

ADM9100, Common Rail Injector Test Bench, for testing different common rail injectors,4Kw,2000Bar, measuring with cups
Competitive Advantage:
Power: Electronic
Usage: Auto Testing Machine
Color: blue yellow or on request
Temperature range: 30—50℃
Motor power: 4Kw
Description:
Main functions:
1. Test common rail injectors of BOSCH,DELPHI,DENSO
2. Check the sealing of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
10. Determine the injectors are good or bad automatically
Main technical specifiions:
1. Motor power: 4Kw
2. Variable frequency motor speed range: 0—3000rpm
3. Pressure control range: 10—2000bar
4. Pressure control accuracy: ±3bar
5. Injection frequency setting range:
100—1500 Times/min
6. Metering range of the flow meter:
0.1ml—2000ml/1000 times
7. Fuel tank capacity: 40L
8. Filter accuracy: 5µm
9. Temperature range: 30—50℃
Technical Specifiion:
|
1. Motor power |
4Kw |
|
2. Variable frequency motor speed range |
0—3000rpm |
|
3. Pressure control range |
10—2000bar |
|
4. Pressure control accuracy |
±3bar |
|
5. Injection frequency setting range |
100—1500 Times/min |
|
6. Metering range of the flow meter |
0.1ml—2000ml/1000 times |
|
7. Fuel tank capacity |
40L |
|
8. Filter accuracy |
5µm |
|
9. Temperature range |
30—50℃ |
Factory Pictures:
