| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM 8500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polyboard |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Supply Ability: | 50SETS |
| Color: | Green | Max Pressure: | 2400 Bar |
|---|---|---|---|
| Power: | 11KW/15KW/18.5KW/22KW | Product Name: | Common Rail Pump Test Bench |
| Rated Voltage: | 220V/380V | Test Pumps Brand: | BOSCH/DELPH/CATERPILLER SINMES |
| Usage: | Auto Testing Machine | Cylinders: | 6 |
| High Light: | 2400 Bar Pump Test Bench,5.5KW Pump Test Bench,BOSCH crdi pump testing machine |
||

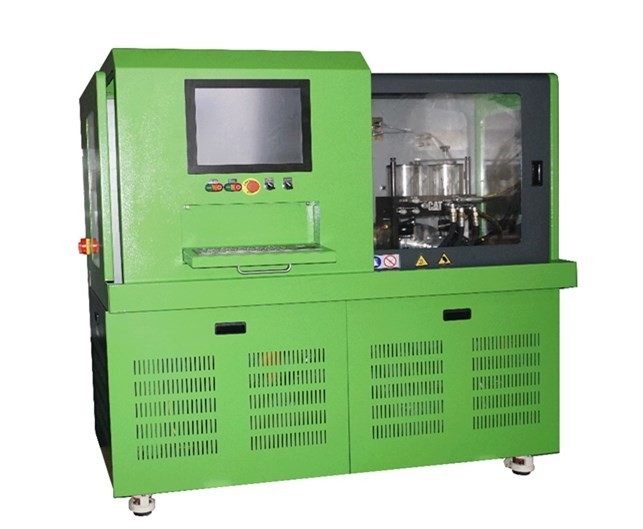

ADM 8500,2400 Bar,Common Rail Test Bench
Quick Details
Usage: Auto Testing Machine
Power: Electronic
Main Specifiions:
| Drive Motor: | 5.5KW/7.5HP |
| Power Supply: | 3-380V/50HZ|3-220V/60HZ. Single 220V/50HZ |
| Speed Range: | 0-4000rpm |
| Injector Flowmter Range : | 0.1-4000 ml/min |
| Pump Flowmter Range | 0.1-16L/min |
| Display: | 15” |
| Common Rail Pump: | BOSCH CP3.3 |
| Common Rail : | BOSCH |
| Filter | BOSCH |
| Test Range Of Rail Pressure | 0-2400Bar |
| Test Channel | 1 |
| Fuel Supply Pump | 5I/min |
| Fuel Supply Pressure: | 0-10Bar |
| Test Fuel Tank: | 40L |
| Heater Power | 2kw |
| Fuel Cooling Unit | Fan Cooling |
| Power Cable | 4-6mm² 5Pin |
| Dimensions | 1600x920x1750mm |
| Paking Dimensions | 1800x1050x1950mm |
| Weight : | 650kg |
common rail pump and injector test bench:
ADM 8500 common rail test bench is our latest independent researched special device to test the
performance of high-pressure common rail pump and injector, it can test common rail pump and
injector of BOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported
high precise flow meter sensor, can test piezo injector. It controlled by industrial computer by real time.
The data is also obtained by computer. 19 LCD screen display makes the data more clear. M800SEN
can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced
technology, steady performance, precise measurement and convenient operation.
Main Functions:
| Test BOSCH DENSO DELPHI CATERPILLER CUMMINS L'ORANGE JOHN DEERE Solenoid valve and Piezo injectors |
| Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps |
| Tests the seal performance of injectors and delivery under different working conditions as follows:- Pre-injection Idle Mid-range Max fuel |
| Automatically measures and displays delivered fuel quantity |
| There are thousands of standard test plans for various types of fuel injectors |
| Coding injetors:BOSCH (IMA ISA ) DENSO (QR) DELPHI (C2I C3I) SIMENS (IIC) |
| Customers can test new injectors and automatically generate new test plans |
| Response time test |
| Resistance, inductance, capacitance measurement |
| Short circuit protection |
| Create customer files |
| Generate test report |
| Free updates |
| One year warranty |
Competitive Advantage:
Factory Pictures:
