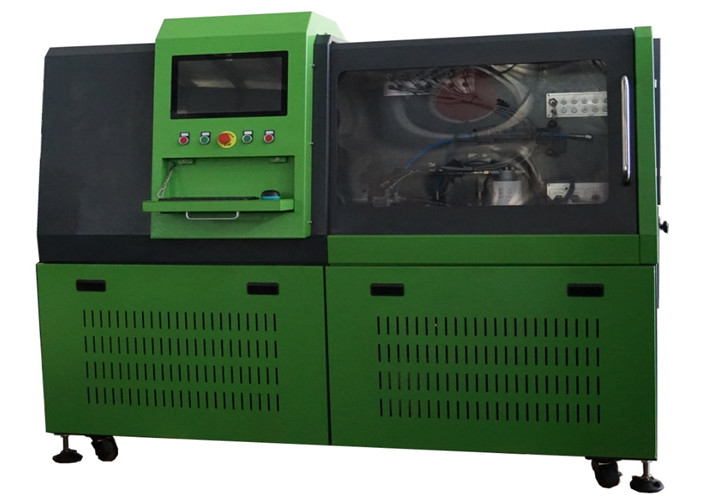

11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps

11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps

  • 11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps
11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps
Product Details:
Place of Origin: CHINA
Brand Name: ADMTECK
Model Number: ADM 8400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Color: Green Max Pressure: 2400 Bar
Power: 11KW/15KW/18.5KW/22KW Product Name: Common Rail Pump Test Bench
Rated Voltage: 220V/380V Test Pumps Brand: BOSCH/DELPH/CATERPILLER SINMES
Usage: Auto Testing Machine Cylinders: 6
Highlight:

11KW/15HP Pump Test Bench

,

11KW common rail pump test bench

,

15HP common rail pump test bench


ADM 8400,11KW/15HP,Common Rail  Test  Bench

Quick Details

Usage: Auto Testing Machine
Power: Electronic

Main Specifiions:

Drive Motor: 11KW/15HP
Power Supply: 3-380V/50HZ|3-220V/60HZ. Single 220V/50HZ
Speed Range: 0-4000rpm
Injector Flowmter Range : 0.1-4000 ml/min
Pump Flowmter Range 0.1-16L/min
Display: 15”
Common Rail Pump: BOSCH CP3.3
Common Rail : BOSCH
Filter BOSCH
Test Range Of Rail Pressure 0-2400Bar
Test Channel 4
Fuel Supply Pump 5I/min
Fuel Supply Pressure: 0-10Bar
Test Fuel Tank: 40L
Heater Power 2kw
Fuel Cooling Unit Fan Cooling
Power Cable 4-6mm² 5Pin
Dimensions 1500x850x1630mm
Paking Dimensions 1600x1050x1850mm
Weight : 650kg



common rail pump and injector test bench:


ADM 8500  common rail test bench is our latest independent researched special device to test the
performance of high-pressure common rail pump and injector, it can test common rail pump and
injector of BOSCH, SIEMENS, DELPHI and DENSO. It tests the common rail injector by imported
high precise flow meter sensor, can test piezo injector. It controlled by industrial computer by real time.
The data is also obtained by computer. 19 LCD screen display makes the data more clear. M800SEN
can fulfill the remote assistance by internet and make the maintenance easy to operate. Advanced
technology, steady performance, precise measurement and convenient operation.

Main Functions:

Test BOSCH DENSO DELPHI CATERPILLER CUMMINS L'ORANGE JOHN DEERE Solenoid valve and Piezo injectors
Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps
Tests the seal performance of injectors and delivery under different working conditions as follows:-
Pre-injection
Idle
Mid-range
Max fuel
Automatically measures and displays delivered fuel quantity
There are thousands of standard test plans for various types of fuel injectors
Coding injetors:BOSCH (IMA ISA ) DENSO (QR) DELPHI (C2I C3I) SIMENS (IIC)
Customers can test new injectors and automatically generate new test plans
Response time test
Resistance, inductance, capacitance measurement
Short circuit protection
Create customer files
Generate test report
Free updates
One year warranty


Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience

Factory Pictures:
11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps 0
11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps 1
11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps 2
11KW / 15HP Common Rail Pump Test Bench Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps 3
