| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | ADM8719 |
| Certifiion: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polyboard |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Supply Ability: | 50SETS |
| Working Voltage: | 3 Phase | Color: | Blue//green |
|---|---|---|---|
| Power: | 18.5Kw | Product Name: | Common Rail Pump Test Bench |
| Rated Voltage: | 220V / 380V / 415V | Fuel Supply Pressure Range: | 0----0.4Mpa |
| High Light: | common rail diesel test equipment,diesel fuel injection pump test bench |
||
ADMTECK

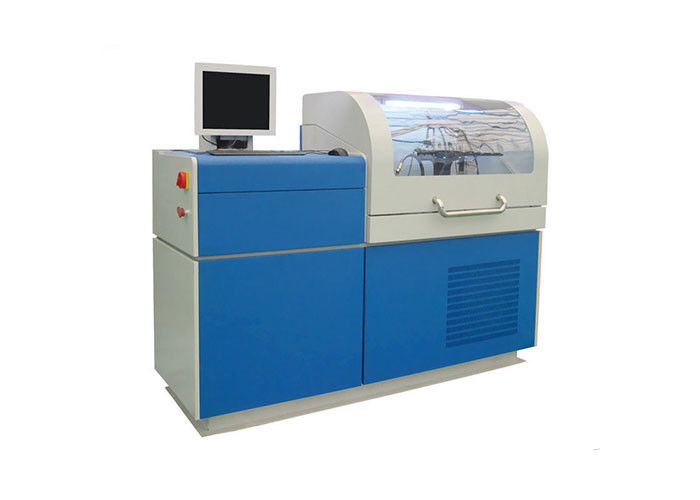

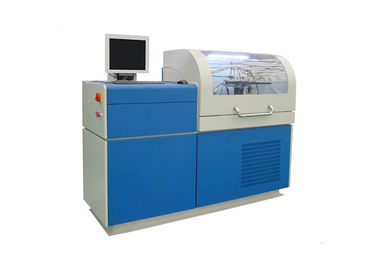

ADM8719, Common Rail System Test Bench, for testing and calibrating different common rail injectors and pumps, 18.5Kw,2000Bar
Quick Details
Indiion: with flow meter
Test injector brand: BOSCH, DELPHI, DENSO, SIEMENS
Usage: Auto Testing Machine
Color: green blue yellow or on request
Power: Electronic
Common rail test bench ADM8719:
ADM8719 common rail test bench is our latest independent researched special device to test the performance of high pressure common rail pump and injector, it can test common rail pump and injector of BOSCH, SIEMENS,
DELPHI and DENSO. It tests the common rail injector by imported high precise flow meter sensor,can test piezo injector. It controlled by industrial computer by real time. The data is also obtained by computer. 19 LCD screen display makes the data more clear. ADM8719 can fulfill the remote assistance by internet an make the maintenance easy to operate. Advanced technology, steady performance, precise measurement and convenient operation.
Main parameters:
1. Main motor power:18.5KW(25HP)；
2. Working voltage: 3 phase 220/380/415V, 50HZ/60HZ；
3. Speed range: 0—4000rpm；
4. Supply pressure of the testing fuel: 0—4bar；
5. Fuel tank capacity: 80L；
6. Currency control range: 0—3A；
7. Injection width control range: 100--3000µs；
8. Injection volume range: 0.1ML—2000ML/1000times；
9. Backflow measuring range: 6—400L/H；
10. Pressure control range: 0—2000BAR；
11. Fuel temperature range: 30--60℃；
12. Cooling method: Compressor cooling
13. Cooling capacity: 5000KALTechnical Specifiion:
MAIN FUNCTIONS:
1. For the testing of the common rail pumps of BOSCH CP1,CP2,CP3, DENSO HP0,HP2,HP3,HP4, DELPHI and SIMENS
2. Test the flow control valve of the common rail pumps.
3. Test the sealing of the CR injectors, the injection flow volume under full loaded, emission point, idling
and the pre-injection, also back flow volume.
Competitive Advantage:
Factory Pictures:
