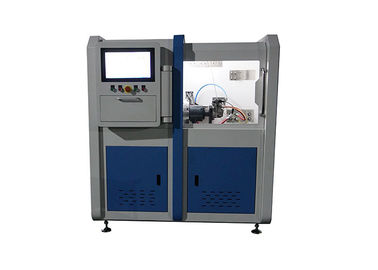

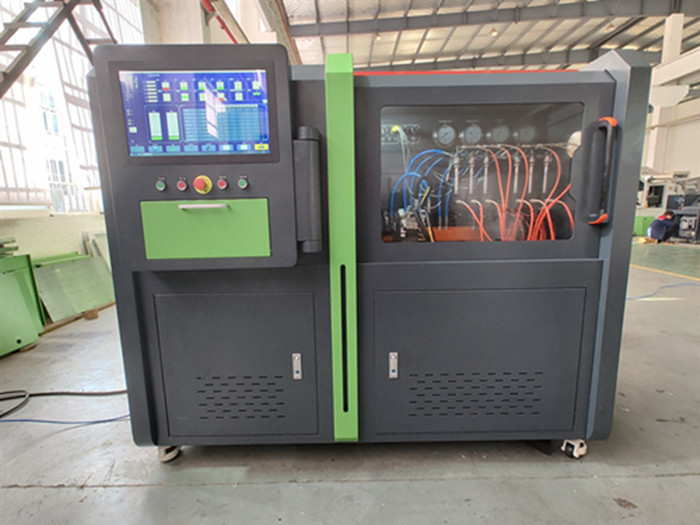

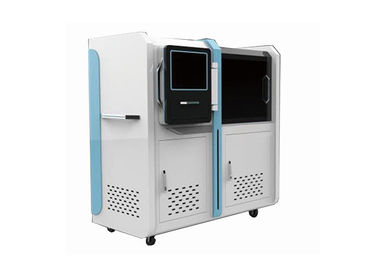

ADM8300 High Performance Common Rail Test Bench With Industrial Computer Multi Function

ADM8300 High Performance Common Rail Test Bench With Industrial Computer Multi Function

  • ADM8300 High Performance Common Rail Test Bench With Industrial Computer Multi Function
  • ADM8300 High Performance Common Rail Test Bench With Industrial Computer Multi Function
  • ADM8300 High Performance Common Rail Test Bench With Industrial Computer Multi Function
ADM8300 High Performance Common Rail Test Bench With Industrial Computer Multi Function
Product Details:
Place of Origin: CHINA
Brand Name: ADMTECK
Model Number: ADM8300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Polyboard
Delivery Time: TWO WEEKS
Payment Terms: 30% T/T in advance, 70% T/T before shipment or L/C or Western Union
Supply Ability: 50SETS
Contact Now
Detailed Product Description
Cylinders: 2 Color: Green & Grey/white & Blue
Power: 11Kw/15Kw Product Name: Common Rail Pump Test Bench
Rated Voltage: 220V / 380V / 415V Feature: High Performance,With Industrial Computer
Pressure: 2000Bar
Highlight:

ADM8300 Common Rail Test Bench

,

Industrial Computer Common Rail Test Bench

,

Multi Function Common Rail Test Bench



ADM8300, for testing Common Rail Injector and Pumps, HEUI , measuring with sensors



MAIN FUNCTIONS
Test BOSCH DENSO DELPHI CATERPILLER CUMMINS L'ORANGE JOHN DEERE Solenoid valve and Piezo injectors
Test BOSCH DENSO DELPHI CATERPILLER SINMES Pumps
Tests the seal performance of injectors and delivery under different working conditions as follows:-
Pre-injection
Idle
Mid-range
Max fuel
Test HEUI CATERPILLAR C7.C9.3126B/3126C. 3408/3412 .NAVISTAR FORD 6.0.ISUZU TROOPER Injectors

Automatically measures and displays delivered fuel quantity
There are thousands of standard test plans for various types of fuel injectors
Coding injetors:BOSCH (IMA ISA ) DENSO (QR) DELPHI (C2I C3I) SIMENS (IIC)
Customers can test new injectors and automatically generate new test plans
Response time test
Resistance, inductance, capacitance measurement
Short circuit protection
Create customer files
Generate test report
Free updates
One year warranty


Quick Details

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience

Usage: Auto Testing Machine
Power: Electronic




Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • More Than 10 Years Experience


For testing and calibrating:


1.   Mechanical in-line pumps and distributor pumps
2.   Electronic control VE pumps and in line pumps, high pressure common rail pumps: BOSCH CP1, CP2,       CP3, DELPHI, SIMENS, DENSO HP0, HP2, HP3 PUMP
3.   Common rail injectors
4.   The testing database could be updated
5.   Check and calibrate automatically and give out the testing report
6.   With industrial computer, more stable and reliable



SPECIFICATIONS
Drive Motor: 7.5/11KW
Power Supply: 3-380V/50HZ|3-220V/60HZ. Single 220V/50HZ
Speed Range: 0-4000rpm
Injector Flowmter Range : 0.1-4000 ml/min
Pump Flowmter Range 0.1-16L/min
Display: 15”
Common Rail Pump: BOSCH CP3.3
Common Rail : BOSCH
Filter BOSCH
Test Range Of Rail Pressure 0-2400Bar
Test Channel 1
Fuel Supply Pump 5I/min
Fuel Supply Pressure: 0-10Bar
Test Fuel Tank: 40L
Heater Power 2kw
Oil Supply Pump 10I/min
Oil Supply Pressure: 0-10Bar
Test Oil Tank: 30L
HEUI Oil Pressure Range 10-250Bar

Fuel Cooling Unit Fan Cooling
Power Cable 4-6mm² 5Pin
Dimensions 1500x850x1630mm
Paking Dimensions 1600x1050x1850mm
Weight : 650kg
