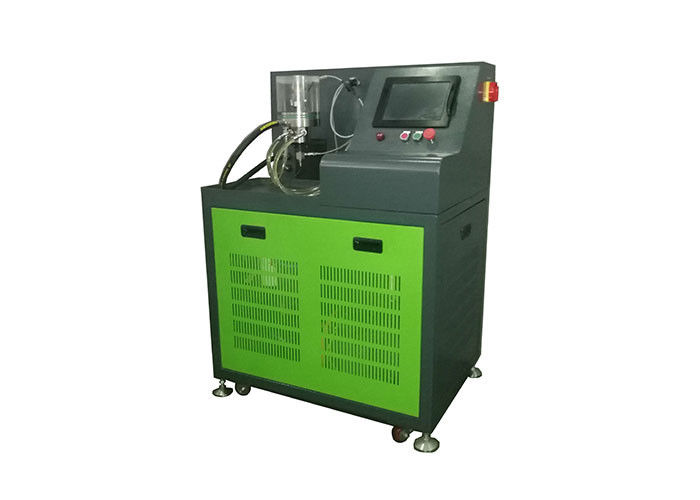

Name: HEUI Injector Test Bench
Brand: WUXI ADM TECHNOLOGY DEVELOPMENT CO.,LTD
SKU: HEUI 300
Price: 399.50 USD
Availability: InStock

Home Products Diesel Injector Shims

HEUI Injector Test Bench

Product Details:

Place of Origin:	CHINA
Brand Name:	ADMTECK
Certification:	CE
Model Number:	HEUI 300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Polyboard
Delivery Time:	45 DAYS
Payment Terms:	T/T
Supply Ability:	50SETS

Contact Now

Detailed Product Description

Highlight:

high pressure electrical injectors test bench

computer control heui injector test bench

4KW heui injector tester

Main Functions:

Tests the seal performance of injectors and delivery under different working conditions as follows:-
Idle
Mid-range
Max fuel

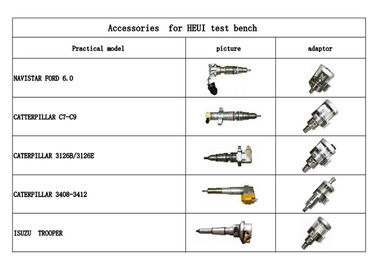

Test HEUI CATERPILLAR C7.C9.3126B/3126C. 3408/3412 .NAVISTAR FORD 6.0.ISUZU TROOPER Injectors

There are thousands of standard test plans for various types of fuel injectors

Customers can test new injectors and automatically generate new test plans

Response time test

Automatically measures and displays delivered fuel quantity

Short circuit protection

Create customer files

Generate test report

Free updates

One year warranty

Main Specifiions:

Oil Motor :	4kw/3HP
Fuel supply motor	0.75kw
Power Supply:	3-380V/50HZ\|3-220V/60HZ. Single 220V/50HZ
Flowmter Range :	0.1-700 ml/min
Oil Flowmter Range :	0.1-4000ml/min (250Bar)
Display:	10.4”
Oil High Pressure Pump:	8L/min
Filter	BOSCH
Test Channel	1,
Test Range Of Oil Pressure	0-250Bar
Test fuel Tank:	20L
Test Oil Tank:	20L
Heater Power	1kw
Fuel Cooling Unit	Compressor refrigeration
Power Cable	4-6mm² 5Pin
Dimensions	1250x700x1700mm
Paking Dimensions	1500x900x1800mm
Weight :	350kg
