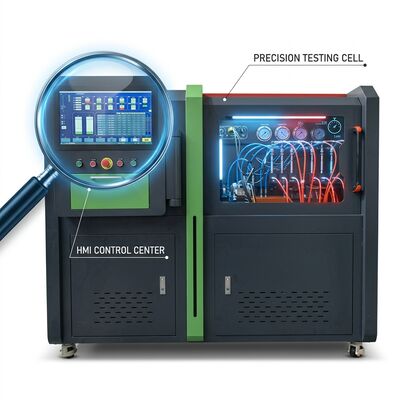

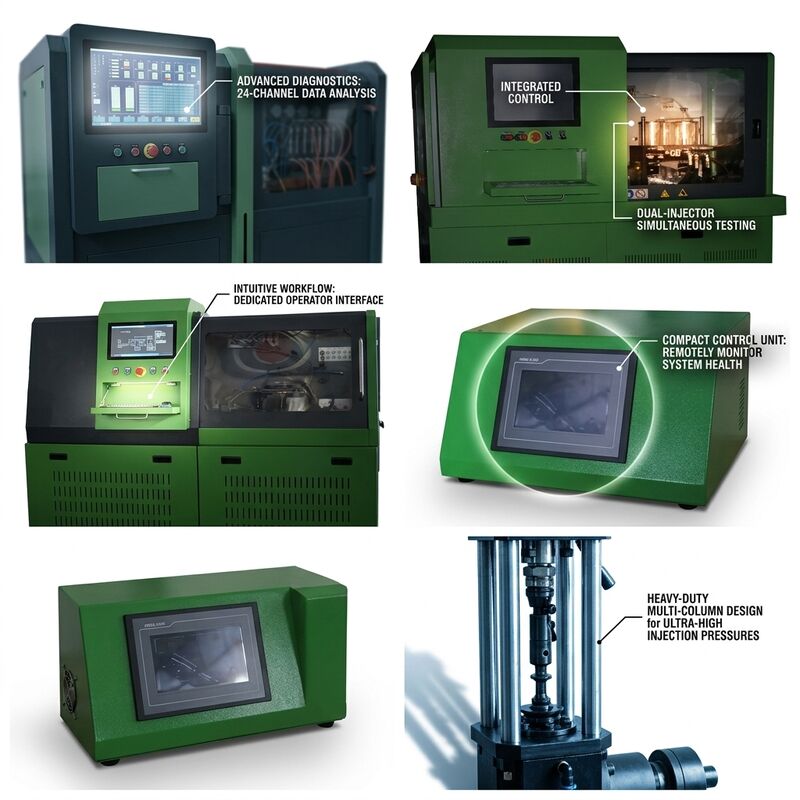

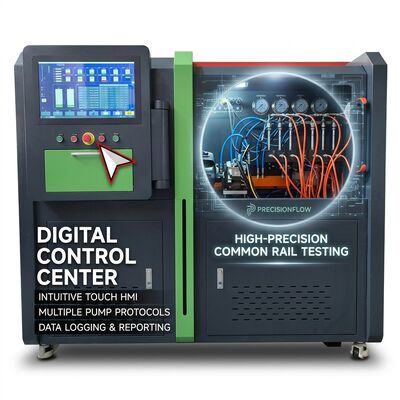

Name: CRB-A1800 High Precision Common Rail Pump Test Bench with Servo Drive Closed-Loop Control and 2500 Bar Max Test Pressure
Brand: WUXI ADM TECHNOLOGY DEVELOPMENT CO.,LTD
SKU: CRB-A1800
Price: 16,500.00 USD
Availability: InStock

Home Products Common Rail Pump Test Bench

CRB-A1800 High Precision Common Rail Pump Test Bench with Servo Drive Closed-Loop Control and 2500 Bar Max Test Pressure

Product Details:

Place of Origin:	Shandong, China
Brand Name:	CRB-A1800
Certification:	ISO 9001:2015
Model Number:	CRB-A1800

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 8000-25000 / Set
Packaging Details:	Export-grade fumigated plywood crate with EPE foam cushioning, waterproof PE cover, and shock indicators
Delivery Time:	20-35 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	50 Sets per Month

Contact Now

Detailed Product Description

Max Test Pressure:	2500 Bar	Motor Power:	11 KW
Speed Range:	0-3000 Rpm	Torque Measurement Accuracy:	±0.2% FS
Speed Measurement Accuracy:	±1 Rpm	Drive Type:	Servo Motor Closed-Loop
Control System:	PLC With Touch Screen HMI	Cooling Method:	Forced Air Cooling
Fuel Supply:	12V / 24V DC	Compatible Pump Series:	CR920, CR940, CR950
Data Interface:	RS232 / USB	Power Supply:	AC 380V 50Hz 3-Phase
Highlight:	Servo Drive Closed-Loop , High Precision Measurement , CR920 CR940 CR950

CRB-A1800 High Precision Common Rail Pump Test Bench

The CRB-A1800 represents the next generation of high precision common rail pump test bench technology, engineered for diesel injection workshops and manufacturing facilities that demand uncompromising measurement accuracy and operational reliability. Equipped with an advanced servo drive closed-loop control system, this test bench delivers exceptional torque measurement precision of ±0.2% FS and speed measurement accuracy of ±1 rpm across the full operating range.

Designed to accommodate CR920, CR940, and CR950 series common rail diesel injection pumps, the CRB-A1800 integrates a high-speed PLC controller with an intuitive touch screen HMI interface for real-time monitoring and data analysis of fuel injection performance parameters.

Key Features

High Precision Servo Drive System: The closed-loop servo motor maintains precise speed and torque control from 0 to 3000 rpm, eliminating drift and ensuring repeatable test results across thousands of pump evaluations.
Advanced Torque Measurement: Equipped with a high-accuracy torque sensor delivering ±0.2% FS measurement precision, enabling detailed power consumption analysis and early detection of pump mechanical degradation.
Real-Time Speed Monitoring: The digital encoder provides ±1 rpm resolution speed tracking, essential for evaluating pump performance curves and verifying manufacturer specifications against actual operating conditions.
Comprehensive Compatibility: Factory-calibrated for CR920, CR940, and CR950 common rail pump series, with user-definable test profiles that can be customized for additional pump models through the software interface.
Intelligent PLC Control: The programmable logic controller manages all test sequences automatically, reducing operator workload and eliminating human error from the testing and calibration process.
Multi-Language Touch Screen HMI: A 10-inch color LCD touch screen with English and Chinese interface options provides intuitive operation, graphical test result display, and one-touch report generation capabilities.

Technical Specifications

Parameter	Specification
Model	CRB-A1800
Max Test Pressure	2500 Bar
Motor Power	11 KW
Speed Range	0-3000 rpm
Torque Measurement Accuracy	±0.2% FS
Speed Measurement Accuracy	±1 rpm
Drive Type	Servo Motor Closed-Loop
Control System	PLC with 10-inch Touch Screen HMI
Cooling Method	Forced Air Cooling
Fuel Supply	12V / 24V DC
Compatible Pump Series	CR920, CR940, CR950
Data Interface	RS232 / USB
Power Supply	AC 380V 50Hz 3-Phase
Net Weight	480 KG
Dimensions (LWH)	1800 * 900 * 1600 mm

Applications

The CRB-A1800 common rail pump test bench is ideally suited for diesel fuel injection pump remanufacturing facilities, automotive service centers specializing in commercial vehicle maintenance, and quality control laboratories performing incoming inspection of common rail pump assemblies. Its high precision measurement capabilities make it the preferred choice for ISO 9001 certified workshops requiring traceable calibration records.

The versatile test profile system supports both production-line rapid screening and detailed forensic analysis of pump performance degradation, making it equally valuable for high-volume remanufacturers and precision-oriented R&D departments. The CRB-A1800 can be integrated with existing workshop data management systems through its RS232 and USB interfaces, enabling centralized quality tracking and paperless documentation workflows.

Packaging & Quality Assurance

Each CRB-A1800 common rail pump test bench is shipped in a reinforced plywood export crate with full EPE foam cushioning to protect sensitive measurement components during international transit. All fluid lines are drained and sealed, and the touch screen panel is protected with a factory-installed acrylic shield.

The package includes a comprehensive English-language operation manual, calibration certificate, one-year standard warranty card, and a starter kit of consumables including fuel filters and O-ring seals. Delivery time is 25-35 working days for standard configurations, with expedited 15-day manufacturing available for urgent orders.

Our dedicated after-sales engineering team provides remote installation support via video call and lifetime free software updates for the control system.
