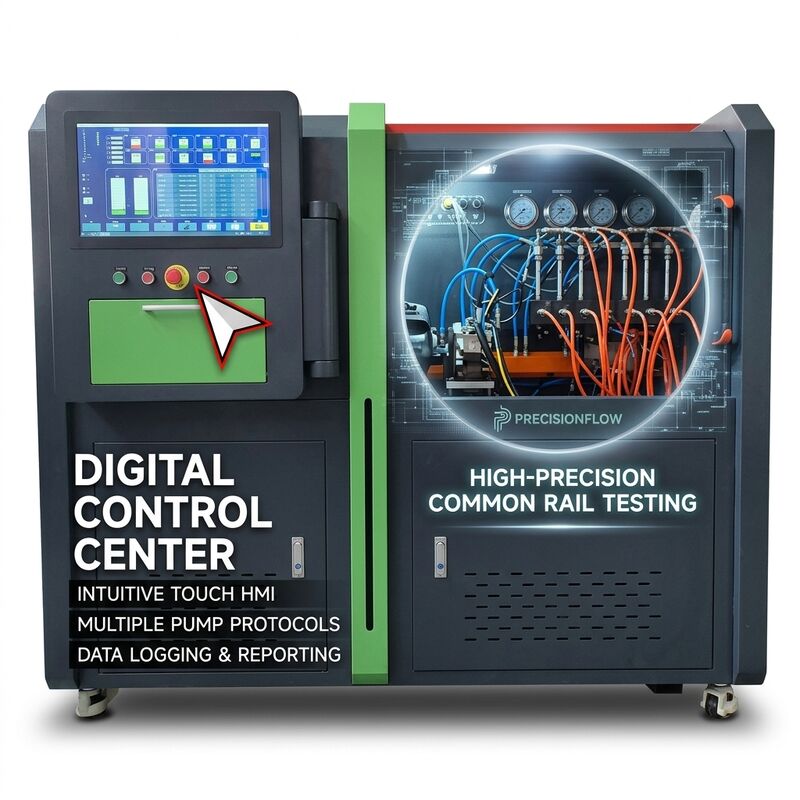

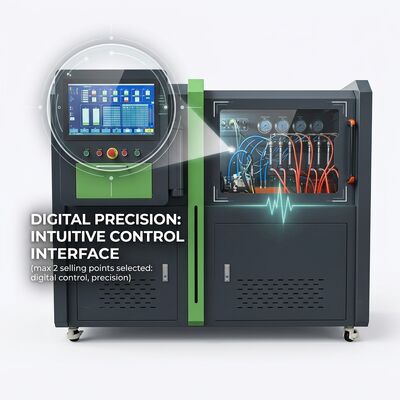

CRP-Duo Plus Dual Station Common Rail Pump Test Bench with 2500 Bar Pressure 11Kw Motor and Automated Report Printer

The CRP-Duo Plus Dual Purpose Common Rail Pump and Injector Test Bench revolutionizes workshop workflow by integrating automated test report generation into a dual-testing platform. Unlike conventional dual-station benches that require manual data recording and handwritten service reports, the CRP-Duo Plus features a built-in thermal printer and USB export module that generates professional, customer-ready test reports in seconds. Each report includes before-and-after pressure curves, flow rate measurements, test duration, operator ID, and workshop logo branding. This documented proof of calibration quality builds customer trust and commands premium service pricing. The bench simultaneously tests a common rail pump on Station A while running an injector on Station B, effectively doubling workshop throughput. With an 11Kw motor delivering 2500 Bar maximum pressure, the CRP-Duo Plus covers all current common rail system generations including the latest piezo injector types.

• Automated Test Report System: Integrated 58mm thermal printer produces professional calibration certificates with pressure curves, flow data, pass/fail criteria, date/time stamp, and customizable workshop header. USB export provides PDF and CSV formats for digital records and email delivery to customers.
• True Dual Independent Stations: Station A for common rail pump testing and Station B for injector testing operate simultaneously with independent pressure control, speed adjustment, and data logging. No waiting between tests means workload bottlenecks are eliminated.
• 2500 Bar Full-Range Testing: Covers all common rail pump generations from legacy CP1 to current CP4 and piezo injectors. High-pressure stability within ±3 Bar during sustained testing ensures accurate and repeatable calibration results.
• 11Kw Three-Phase Motor with Soft Start: The soft-start motor controller reduces inrush current by 60%, protecting workshop electrical infrastructure and extending motor life. Smooth ramp-up to target RPM within 3 seconds without belt slippage or torque spikes.
• Dual Digital LCD Displays: Each station has its own independent 7-inch LCD screen showing real-time RPM, rail pressure, fuel temperature, injector return flow, and test progress. Operators can monitor both tests simultaneously at a glance.
• 20L Extended Oil Tank with Dual Filtration: The large-capacity tank features a primary 10-micron filter and secondary 5-micron polishing filter, ensuring contamination-free test oil reaches both stations. Quick-drain valve and magnetic drain plug simplify oil changes.
• Pre-Loaded Test Profiles for 30 Pump Models: One-touch selection of pre-configured test parameters for BOSCH CP1, CP3, CP4, DENSO HP3, HP4, DELPHI DFP, and SIEMENS VDO pumps. Custom profiles can be created and saved for non-standard pump models.

The CRP-Duo Plus is engineered for professional diesel injection workshops processing 8 or more pump and injector units daily. The automated report generation is particularly valuable for workshops serving fleet management companies, insurance claim verification, and warranty service centers where documented proof of calibration is mandatory. The dual-station design allows workshops to assign one technician to manage both test cycles simultaneously, reducing labor costs by up to 40% compared to operating two separate single-purpose test benches. The USB data export capability enables integration with workshop management software for comprehensive customer service history tracking and automated reminder scheduling for return calibration visits.

Each CRP-Duo Plus is shipped in a fumigated plywood export crate with full EPE foam cushioning. The shipment includes a starter kit of thermal paper rolls sufficient for 500 reports, a set of standard pump and injector mounting adapters for BOSCH, DENSO, DELPHI, and SIEMENS, a complete high-pressure hose and fitting kit, printed English operation manual, and a two-year standard warranty. Standard delivery time is 15 to 25 working days. WNRLN provides complimentary remote installation guidance, operator training via video call, and lifetime technical support.
