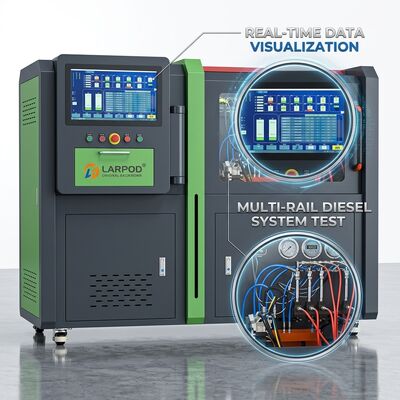

CRP-Multi 4-in-1 Universal Diesel Pump Test Bench with 15Kw VFD and 2500 Bar Pressure Range

The CRP-Multi 4-in-1 Universal Common Rail Test Bench Station represents the ultimate in workshop versatility, consolidating four essential diesel fuel injection testing functions into a single, unified platform. This comprehensive station tests common rail pumps, common rail injectors, VE distributor pumps, and inline injection pumps without requiring separate dedicated equipment for each pump type. For independent workshops serving mixed vehicle fleets ranging from modern common rail trucks to legacy mechanically governed agricultural equipment, the CRP-Multi eliminates the floor space, capital investment, and operator training burden of maintaining four separate test benches. A 15Kw three-phase motor provides the power and torque range needed across all pump types, while the intelligent control system automatically selects the appropriate testing protocol based on the connected component type. Quick-change adapter kits enable complete function changeover in under 10 minutes, ensuring maximum equipment utilization throughout the working day.

• Four Independent Testing Modes: Mode 1 tests common rail pumps up to 2500 Bar. Mode 2 evaluates common rail injectors with piezo and solenoid drive capability. Mode 3 handles VE distributor pumps with electronic timing control measurement. Mode 4 tests inline injection pumps up to 12 cylinders with phasing angle verification.
• 15Kw Variable Frequency Drive Motor: The VFD-controlled motor delivers precise speed regulation from 100 to 4000 RPM with ±2 RPM accuracy across the full range, automatically adjusting torque output to suit the mechanical load characteristics of each pump type from low-resistance VE pumps to high-torque inline pumps.
• Quick-Change Universal Mounting System: A dovetail slide-and-lock mounting platform accepts four dedicated adapter plates for common rail pumps, common rail injectors, VE pumps, and inline pumps. Each adapter plate is color-coded and includes alignment dowels for foolproof installation. Complete function changeover averages 8 minutes.
• 25-Liter Dual-Compartment Oil Tank: The innovative tank design features separate clean and return compartments with an intermediate 5-micron filter curtain, ensuring that return oil from high-wear inline pump testing does not contaminate the supply to precision common rail components on the next test cycle.
• Multi-Mode Digital Control Console: A 12-inch color touch screen with mode-specific graphical interfaces automatically displays relevant parameters for each test type. The system stores calibration data for up to 200 pump models and generates consolidated test reports documenting all four test modes under a single workshop identifier.
• Integrated Phasing Angle Measurement: A high-resolution optical encoder with 3600 pulses per revolution provides inline pump phasing angle measurement accurate to 0.1 degree of camshaft rotation, enabling precise adjustment of injection timing across all cylinders.
• Water Cooling with Automatic Thermal Management: A closed-loop water cooling system with radiator and thermostatic control maintains stable test oil temperature during extended multi-mode testing sessions. The system automatically increases cooling capacity when switching to high-power inline pump mode.

The CRP-Multi is the ideal single-bench solution for independent diesel workshops in rural and regional areas where the vehicle mix spans multiple generations of diesel technology. Agricultural equipment service centers benefit from the ability to test both modern common rail systems on late-model tractors and legacy VE or inline pumps on older machinery using a single piece of equipment. Vocational training institutions appreciate the CRP-Multi as a comprehensive teaching platform that exposes students to all major diesel injection technologies within a consistent operating environment. Fleet maintenance facilities with mixed vehicle inventories eliminate the cost and space of multiple dedicated test benches while ensuring that every pump type in their fleet can be properly calibrated to manufacturer specifications. The CRP-Multi is also the preferred choice for diesel pump remanufacturing companies that process diverse pump types and cannot justify dedicated equipment for lower-volume pump families.

Each CRP-Multi ships in a fumigated plywood export crate with dedicated compartments for the main unit, four color-coded adapter plates, and accessory kits. The shipment includes complete adapter sets for CR pump, CR injector, VE pump, and inline pump mounting, a universal high-pressure hose kit with quick-disconnect fittings for all four test modes, a comprehensive English-language operation manual with mode-specific setup guides, calibration certificate, and a two-year standard warranty. Standard delivery time is 20 to 30 working days. WNRLN provides lifetime free software updates for the control system and complimentary remote training covering all four test modes.
