| Place of Origin: | CHINA |
| Brand Name: | ADMTECK |
| Model Number: | 12PSDW-B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polyboard |
| Delivery Time: | TWO WEEKS |
| Payment Terms: | 30% T/T in advance, 70% T/T before shipment or L/C or Western Union |
| Supply Ability: | 50SETS |
| Feature: | Driven By Motor | High Pressure: | 0-60bar |
|---|---|---|---|
| Inner Pressure: | 0-16bar | Power Supply Frequency: | 50/60 HZ |
| Product Name: | Fuel Pump Testing Machine | Usage: | Auto Testing Machine |
| Cylinders: | 6|12 | Power: | 5.5kw|7.5kw|11kw|15kw|18.5kw|22kw |
| Rated Voltage: | 415V|380V|220V | ||
| High Light: | ADM 12PSDW-B fuel injection pump tester,12PSDW-B Mechanical Fuel Pump Test Bench |
||

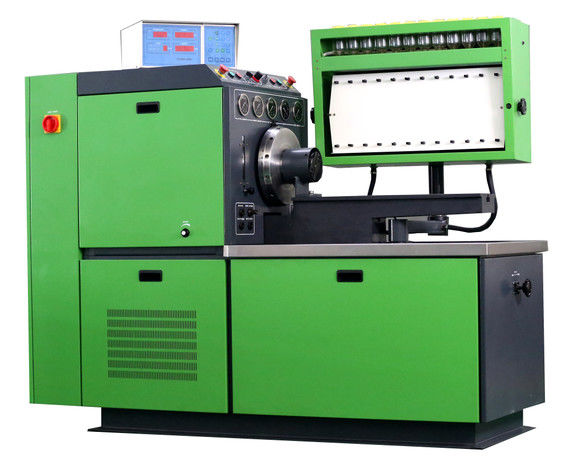

ADMTECK 12PSDW-B, mechanical fuel pump test bench,Injection fuel Pump Test Bench / fuel pump testing machine , driven by motor, six kinds of output power for option,without forced oil lubriion function
Quick Details
Technical specifiion:
1.Motor power:.5.5KW,7.5KW,11KW,15KW,18.5KW,22KW
2.Power supply voltage:415,380,220v
3.Power supply frequency:50/60HZ
4.Protection level: IP54
5.Speed rang: 0-4000rpm
6.Counter setting range:0-9999
7.Temperature setting rang: 0-80
8.Center height of driving shaft:125mm
9.DC power: 12/24V
10.Diameter of the Driving connector:120mm
11.Measuring tube:45ml,150ml,260ml(optional)
12.Number of Measuring cylinder:12
13.Oil Supply pump:10L/min
14.Oil supply pressure:High pressure: 0-40bar;low pressure:0-4bar
15.Oil tank cubage:60L
16.Pressure meter:Low pressure:0-6bar;high pressure:0-60bar;
inner pressure:0-16bar;Vacuum pressure:.1-2.5bar;Oil meter:0-10bar
17.Heat Power:2kw
18.Temperature controlled range:30-60
Main Functions:
1.Fuel delivered from each cylinder on any speed can be tested
2.Speed, temperature,counter,pressure,Rack meter can be displayed on the numeric unit of test bench.
3.Forced oil lubriion function(Optional)
4.Directly driven by motor,variable frequency stepless speed regulation
5.Static inspection on the delivery time of each cylinder
6.Inspection on Performance of the mechanical and pneumatic governor
7.Inspection on performance of the solenoid valve
8.Inspcetion on performance of the minus pressure of pneumatic governor
9.Inspection on the performance of the Pressure Compensator
10.Oil returned valume of distribute pump
11.Inspection on the inner pressure of the VE pump
12.Inspection on the performance of the minus pressure of pneumatic governor
13.Inspection on the Pump body sealing performance
Competitive Advantage:
