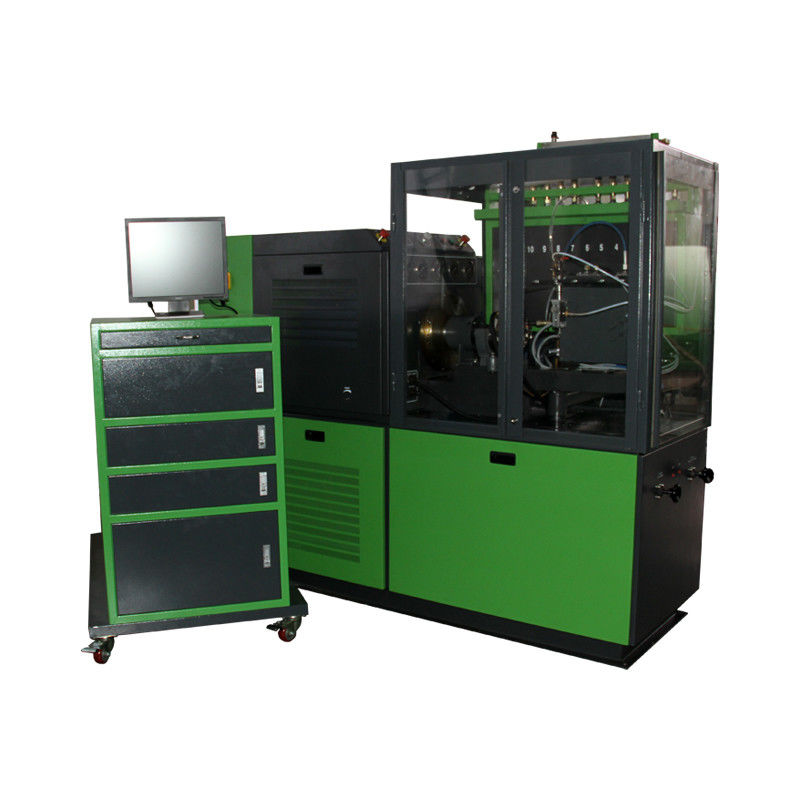

CP4.2 Common Rail Pump Test Bench 3000 Bar Wear Debris Detection 15Kw Servo Drive CRP-CP4X

The CRP-CP4X is a dedicated common rail pump test bench engineered around the  CP4 and CP4.2 high pressure pump family, the units fitted to a large share of modern light duty and medium duty diesel engines. CP4 pumps are unforgiving of poor fuel lubricity and internal metallic wear, so the bench pairs a 15 kW AC servo drive with a 3000 bar pressure circuit and an inductive wear debris sensor. A workshop can therefore reproduce rail pressure build up exactly as the engine control unit commands it, and read the first signs of internal abrasion long before the pump fails on the vehicle.

Every test sequence runs from an industrial PC with a 15 inch touch panel. The operator selects the pump family, the bench loads the matching pressure and speed profile, and the system logs delivery volume, return flow, rail pressure stability and debris count into one single report. No manual gauge reading is required, and no result is lost between shifts or between technicians.

The frame is a welded steel monocoque with a removable front service panel, so pump fixtures can be exchanged without dismantling the cabinet. All high pressure lines are 316L stainless steel, proof tested to 4500 bar, which leaves a 1.5 safety factor across the full 3000 bar working range.

• CP4 Native Quick Release Fixture: the cradle accepts CP4.1, CP4.2 and CP4S pump bodies directly, with a spring loaded coupling that seats the drive shaft in under thirty seconds and removes the need for adapter plates.
• 3000 Bar Stainless Pressure Circuit: high pressure lines, fittings and the rail manifold are machined from 316L stainless steel and proof tested to 4500 bar, keeping a 1.5 safety factor across the working range.
• Inline Wear Debris Sensor: an inductive particle counter on the return line reports ferrous contamination from 5 to 200 ppm, so a technician can quantify pump wear instead of guessing from a pressure drop.
• 15 kW AC Servo Drive: shaft speed is held within plus or minus one rpm from 0 to 4000 rpm, which keeps delivery volume readings repeatable when the same pump is retested after repair.
• ECU Emulation Module: a programmable PWM driver controls , Denso and  pressure control valves, so the bench sweeps the whole rail pressure map without a donor vehicle.
• Automatic Test Report Archive: fifty thousand records are stored on the local solid state drive, and results export as PDF or CSV over USB for warranty files and customer handover.

The CRP-CP4X suits diesel service workshops that rebuild CP4 pumps in volume, remanufacturing plants that need an incoming inspection gate, and fleet maintenance depots running light commercial vehicles. Because the debris sensor quantifies contamination, the bench is also used to settle warranty disputes: a pump showing 180 ppm of ferrous debris after 20000 km points to a fuel quality problem rather than to a defective unit.

Common routines include delivery volume verification across the pressure map, return flow measurement at idle and full load, pressure holding tests for internal leakage, and a lubricity stress cycle that runs the pump on a controlled low lubricity sample to screen marginal rebuilds before they reach a customer.

Each bench ships in a fumigated plywood crate with a steel base frame, closed cell foam blocks around the cabinet corners and a moisture barrier bag. The crate is braced for forklift entry on two sides and carries shock indicators, so transport damage is visible on arrival. A commissioning kit travels separately with a spare filter element, high pressure line seals, an operator manual and a USB drive holding the test profile library.

Every unit runs four hours on a reference pump before shipment. The factory report covers pressure stability, delivery repeatability across ten consecutive cycles and insulation resistance of the drive cabinet. A twelve month warranty covers the drive, the pressure sensor and the control PC, with spare parts held in stock for ten years.
